Weir Filter Installation

The Water Decontaminator Weir Catch Basin Filter can be installed in all types of storm drain catch basins. Here we show one being installed under a square grate. The WD Weir Catch Basin Filter is a patented, environmental product that is placed under the catch basin grate to help remove trash, sediment, oil and contaminants from runoff. Oil and contaminants are captured in a disposable cartridge. The absorber cartridge uses recycled forest products, essentially fighting pollution with pollution. These units include the 5mm screened bypass to help remove floating debris.

Applications:

  • Urban run-off

  • Roadways

  • Parking lots

  • Industrial sites

  • Manufacturing

  • Maintenance areas

Helps clean parking lot run-off, catch basins, ponds, sumps and spills. Cleans storm run-off by screening sediment, debris and other solids into a sediment trap. Oils and chemicals are absorbed in a disposable cartridge

Video Block
Double-click here to add a video by URL or embed code. Learn more

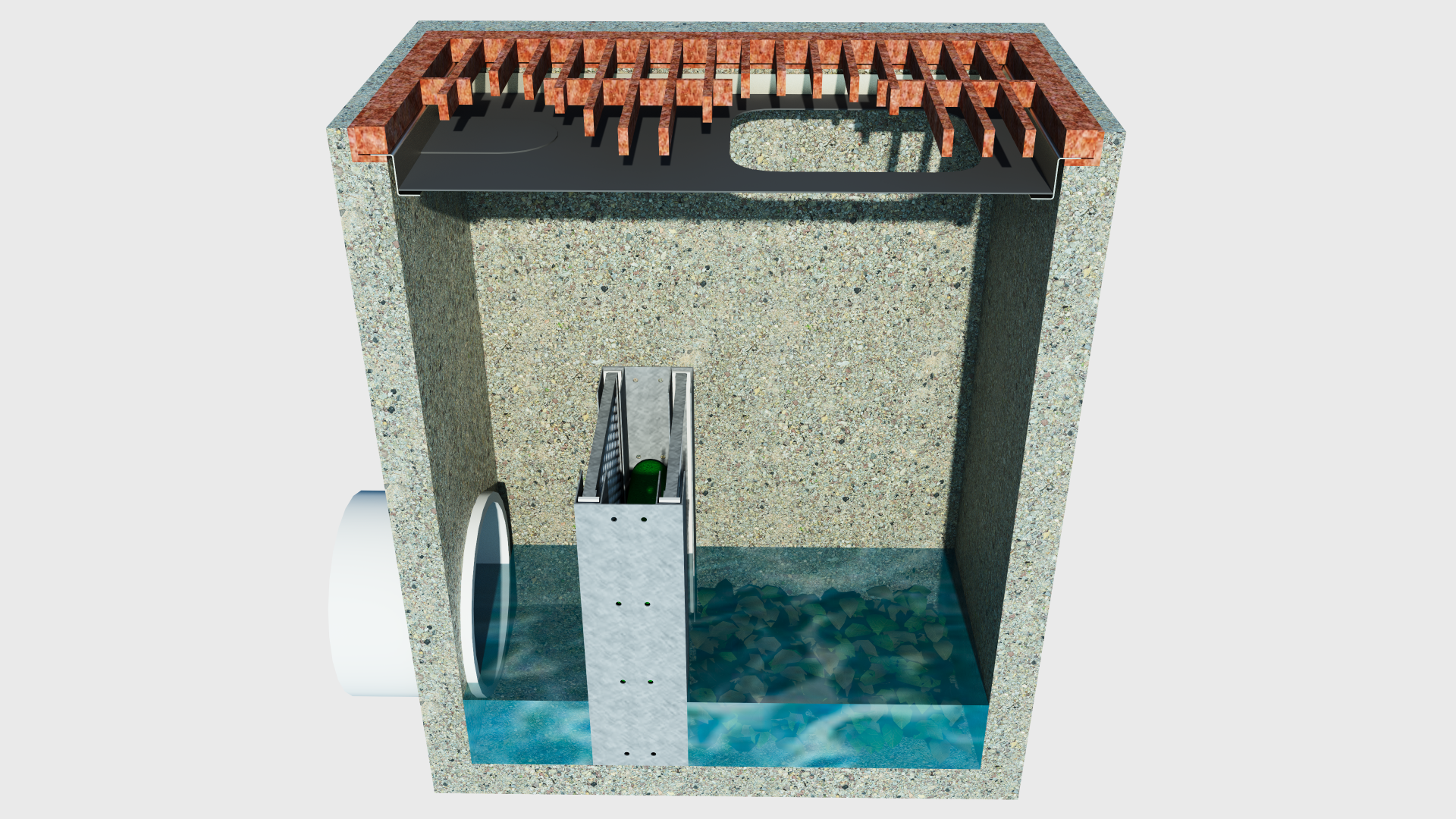

Cross-section illustration of a weir filter system from the Water Decontaminator showing different components, including a filtration grid, filter, and water with debris, and arrows indicating water flow.

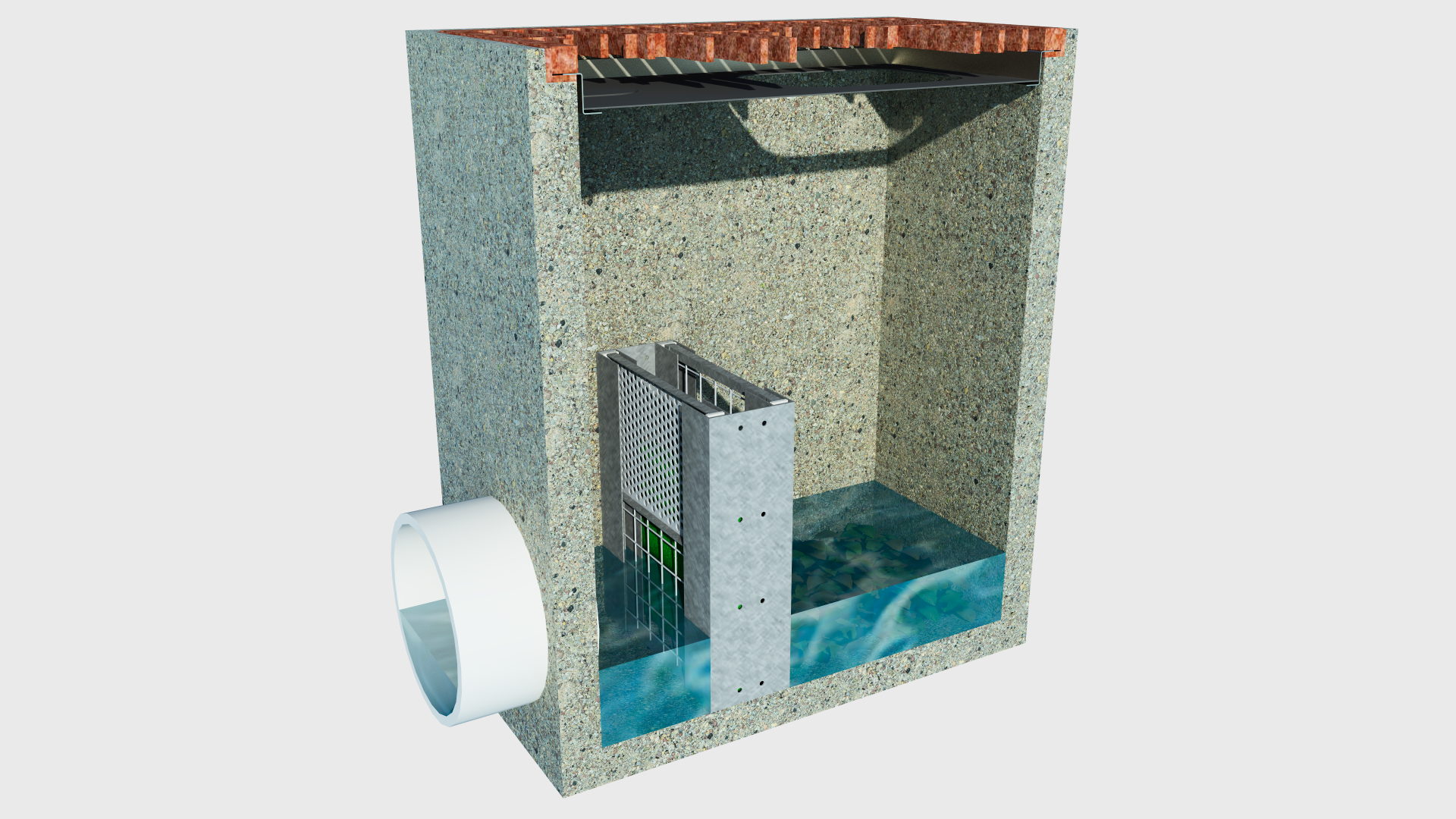

Left side cross-section illustration of a weir filter system from the Water Decontaminator showing different components, including a filtration grid, filter, and water with debris on the pre-treatment side and clean water post-treatment.

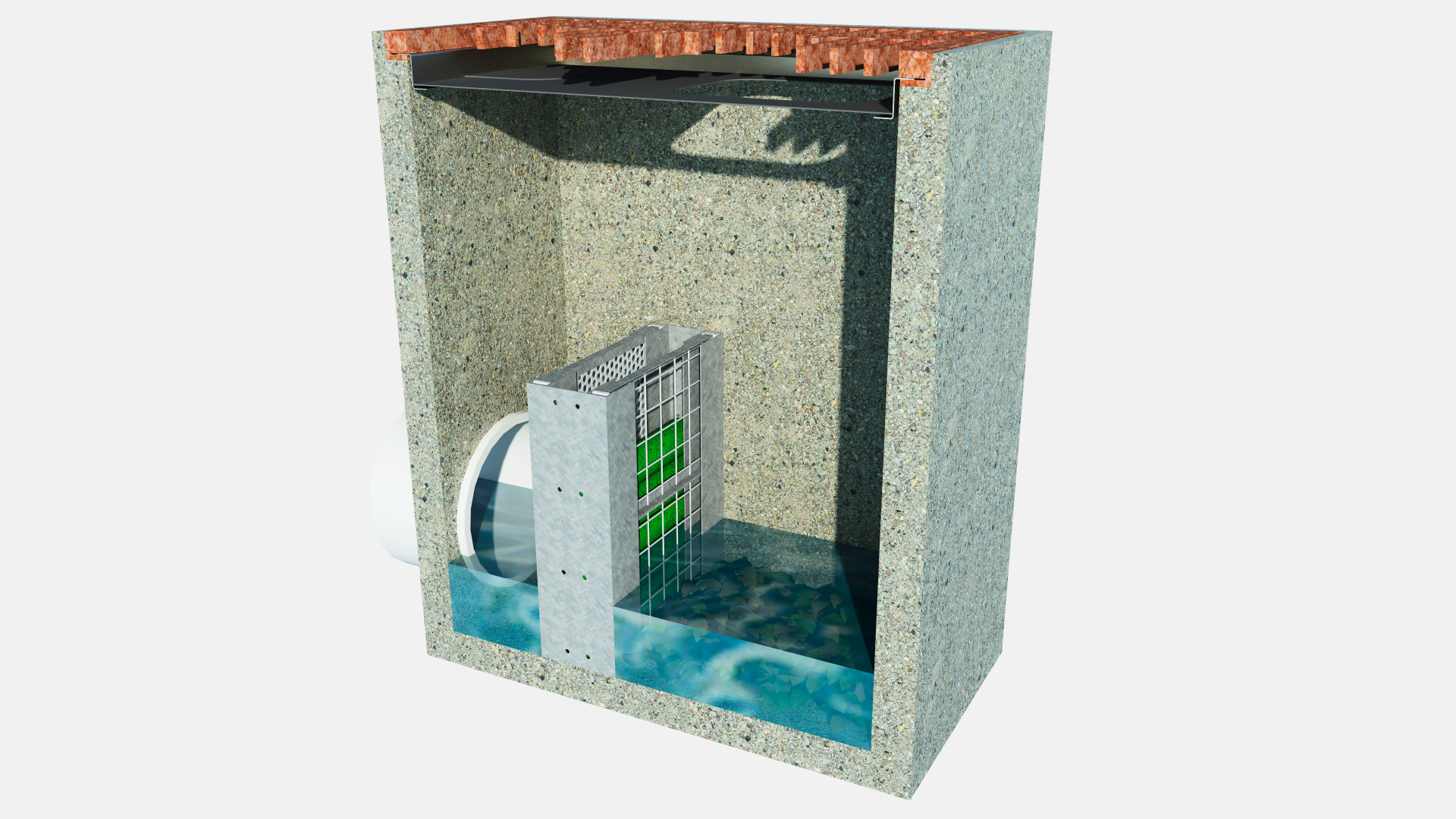

Right side cross-section illustration of a weir filter system from the Water Decontaminator showing different components, including a filtration grid, filter, and water with debris on the pre-treatment side and clean water post-treatment.

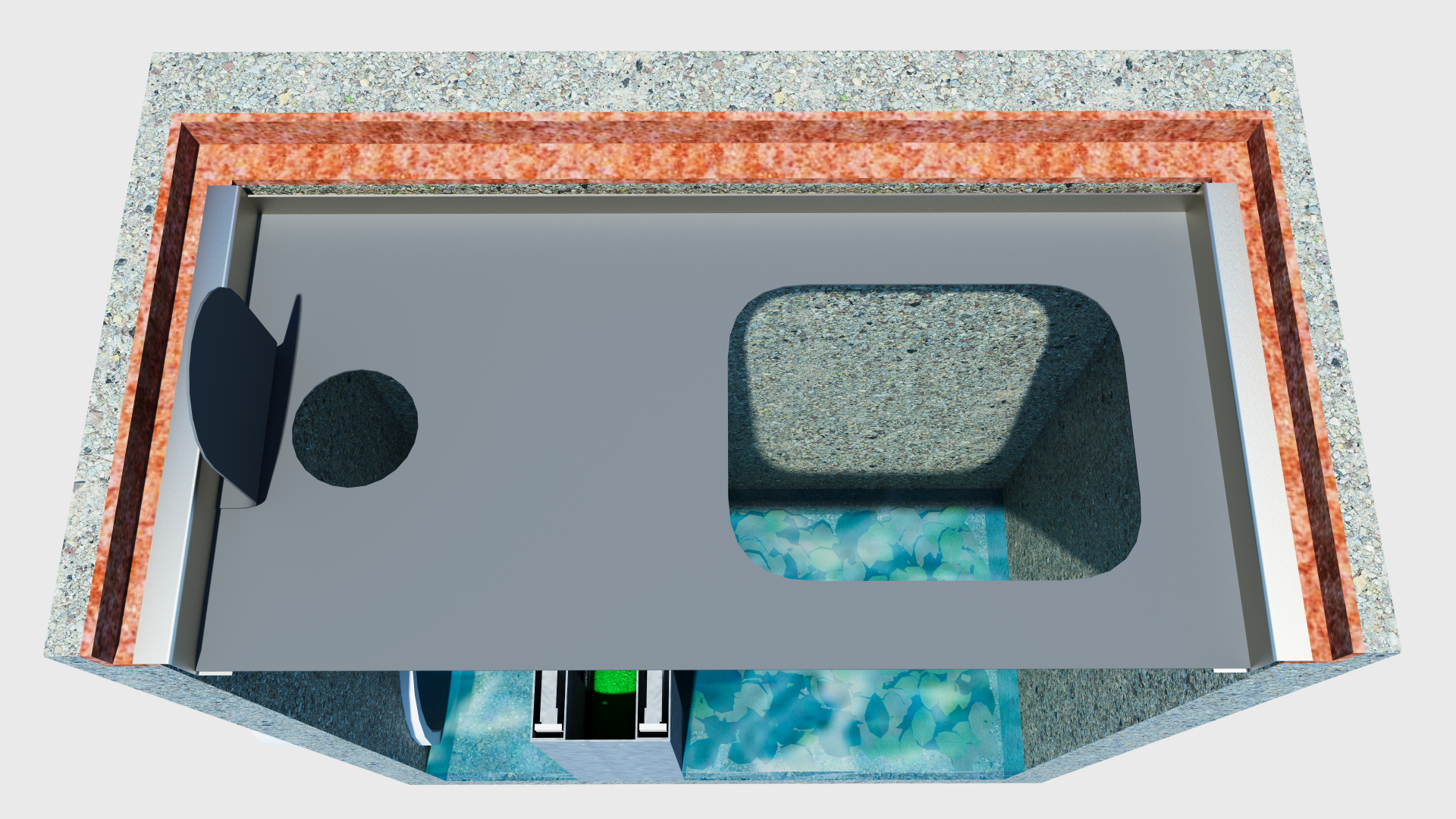

A top-down view of a weir filter system from the Water Decontaminator showing the collar directing flow into a pre-treatment basin, filtration grid, and filter.
Cross-section illustration of a weir filter system from the Water Decontaminator showing different components, including a filtration grid, filter, and water with debris.

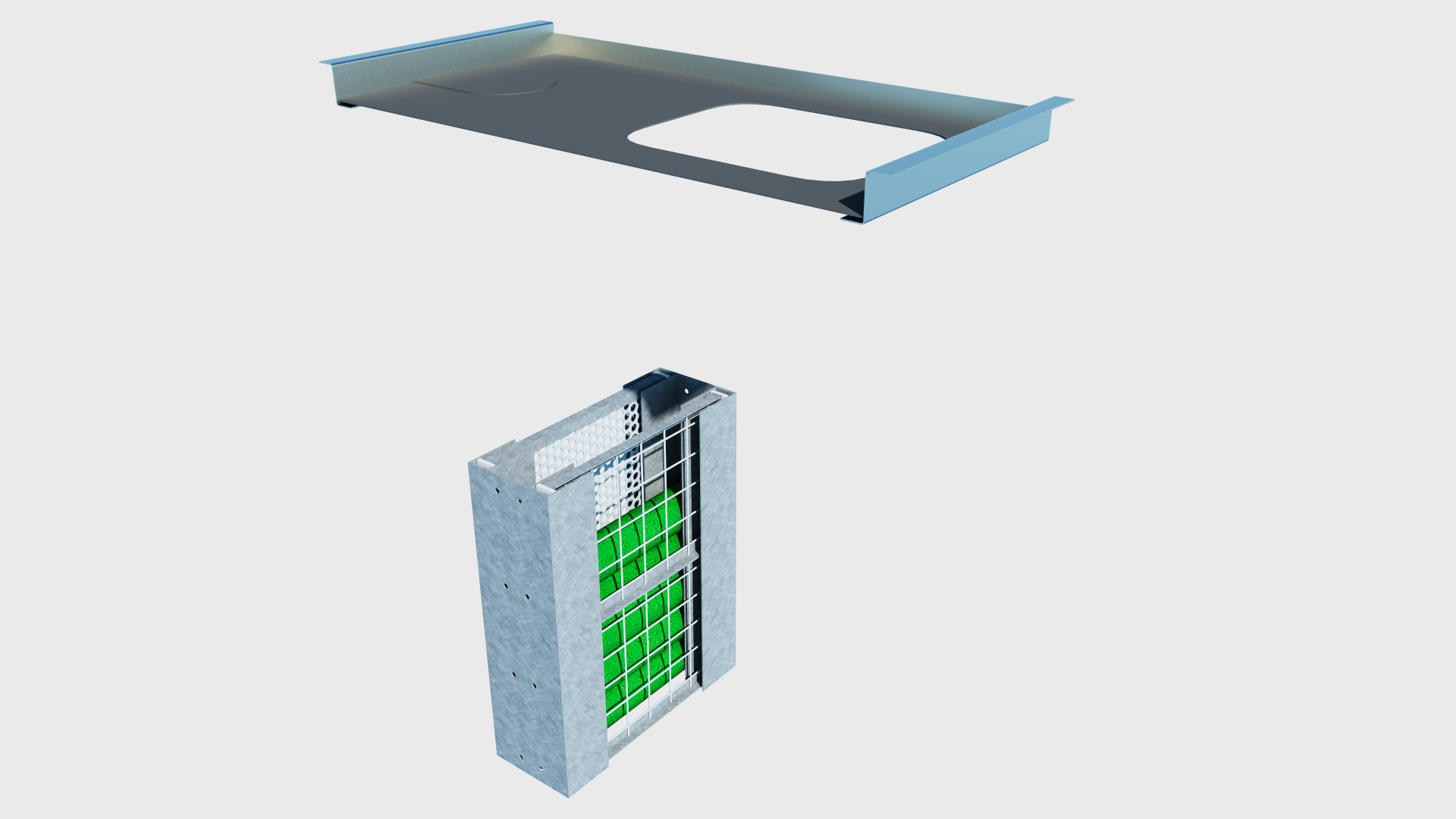

3D-rendered image of a weir catch basin filter device from Water Decontaminator, showing a top collar with cutout for water flow, a metal frame with green filter socks, and a supporting structure.



Get a Quote

The WD-TCU has several standard sizes, but can be custom fit to any existing catch basin. Please completely fill out the appropriate sizing guide below before ordering. Including pictures of the catch basin and bottom of the grate is also helpful.

Download sizing guide

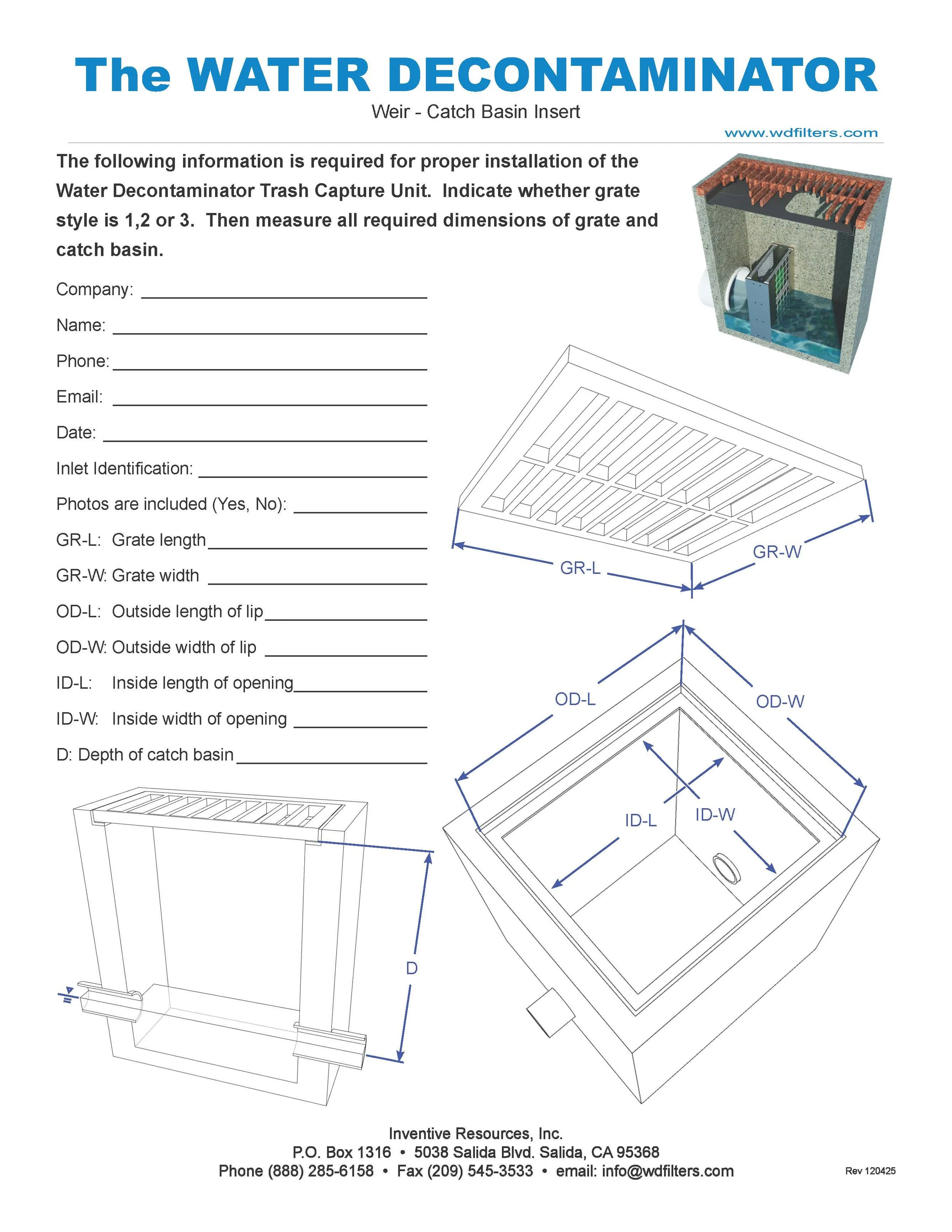

Installation guide for a water decontaminator catch basin storm water filter, including diagrams with measurements for grate and catch basin dimensions, and contact information for Inventive Resources, Inc.
A wireframe diagram of a square-shaped storm drain catch basin with labeled measurements OD-L, OD-W, ID-L, ID-W for outer length, outer width, inner length, and inner width.

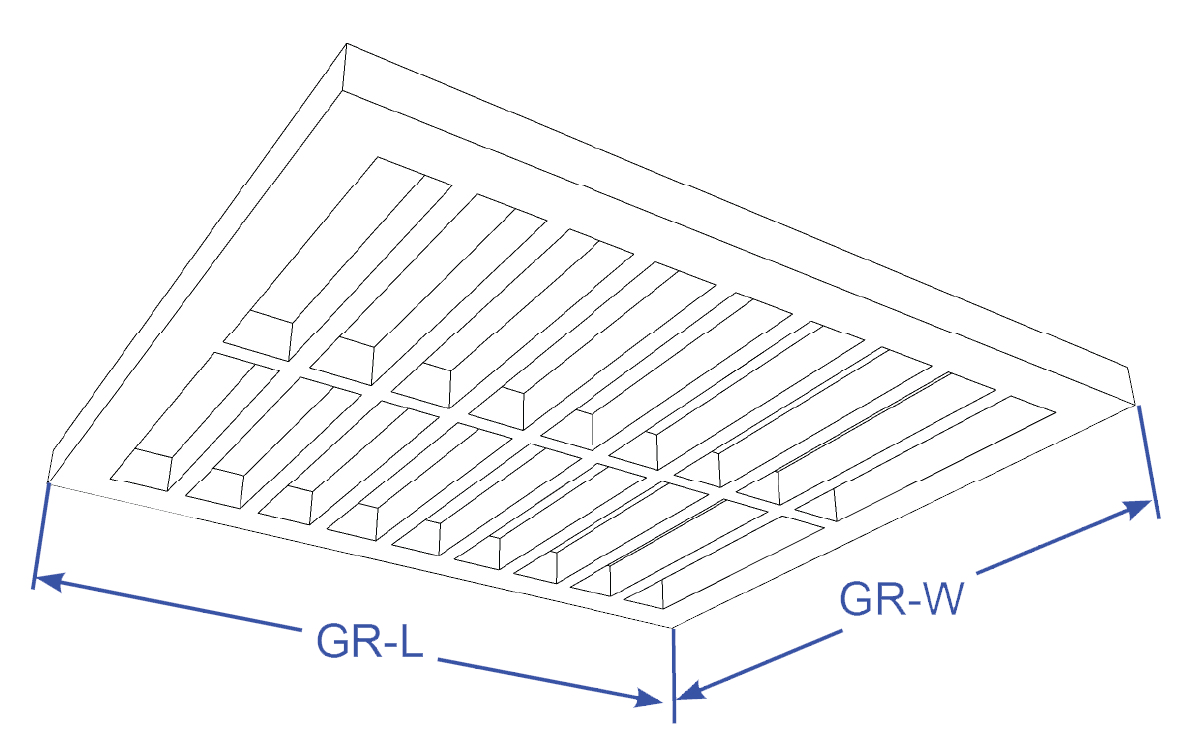

A wireframe diagram of a rectangular storm drain grate, labeled with dimensions GR-L and GR-W.
A wireframe diagram of a rectangular storm drain grate with acatch basin and a protruding component on the side, labeled with dimensions D and A.

Important Measurements

To insure a proper fit, all the items on the form should be filled in.

OD-L: Outside length of lip

OD-W: Outside width of lip

ID-W: Inside width of opening. This is the smallest clear hole inside the catch basin. Take into account any rough concrete or restrictions.

ID-L: Inside length of opening. This is the smallest clear hole inside the catch basin. Take into account any rough concrete or restrictions.

GR-L: Grate Length

GR-W: Grate Width

Also note if there are any other issues that may need to be considered for fitment. For example access ladders, pipes or other restrictions.
