Valley Inlet Installation

The Valley Inlet Water Decontaminator Catch Basin Filter - Trash Capture Unit (WD-TCU) is a patented, environmental product that is placed under a catch basin grate to help remove trash, sediment, oil and contaminants from runoff at a low point, or valley, where two street surfaces or sloped areas meet. This makes it ideal for locations such as a street intersection or areas where there is a change in grade. Oil and contaminants in runoff are captured in a disposable cartridge. The absorber cartridge uses recycled forest products, essentially fighting pollution with pollution.

Trash Capture Catch Basin Insert Applications:

  • Urban run-off

  • Roadways

  • Parking lots

  • Industrial sites

  • Manufacturing

  • Maintenance areas

Helps clean parking lot run-off, catch basins, ponds, sumps and spills. Cleans storm run-off by screening sediment, debris and other solids into a sediment trap. Oils and chemicals are absorbed in a disposable cartridge.

Video Block
Double-click here to add a video by URL or embed code. Learn more

The Water Decontaminator is engineered and patented for the treatment of stormwater run off. We design our filters to meet or exceed stormwater best management practices (BMP’s) and best available technology (BAT). These units are certified and included in the Capture System List of Trash Treatment Control Devices by the California State Water Resources Control Board.

*Authorized dealer for Filtrexx.

Valley Inlet Water Decontaminator TCU

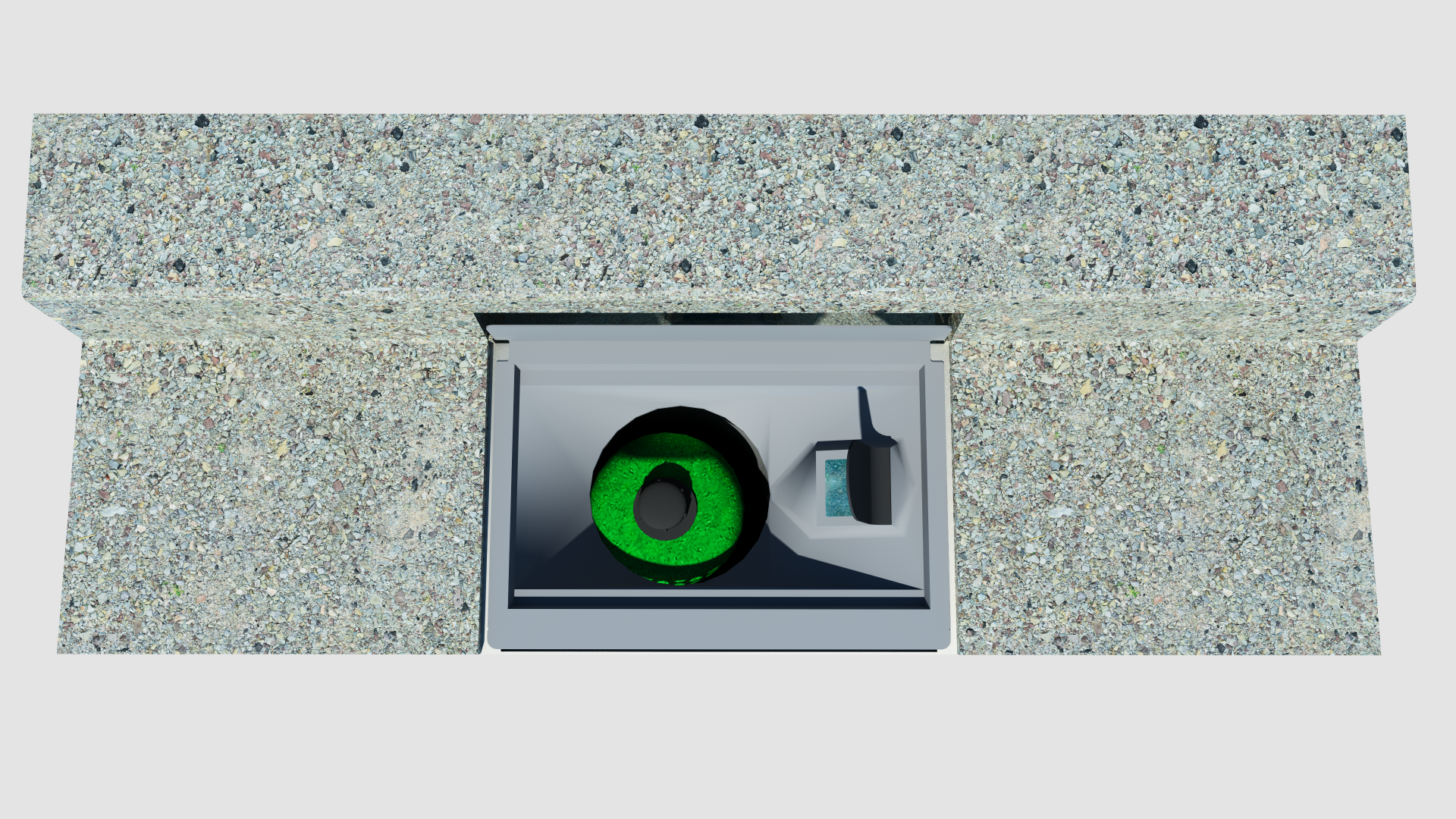

Top View

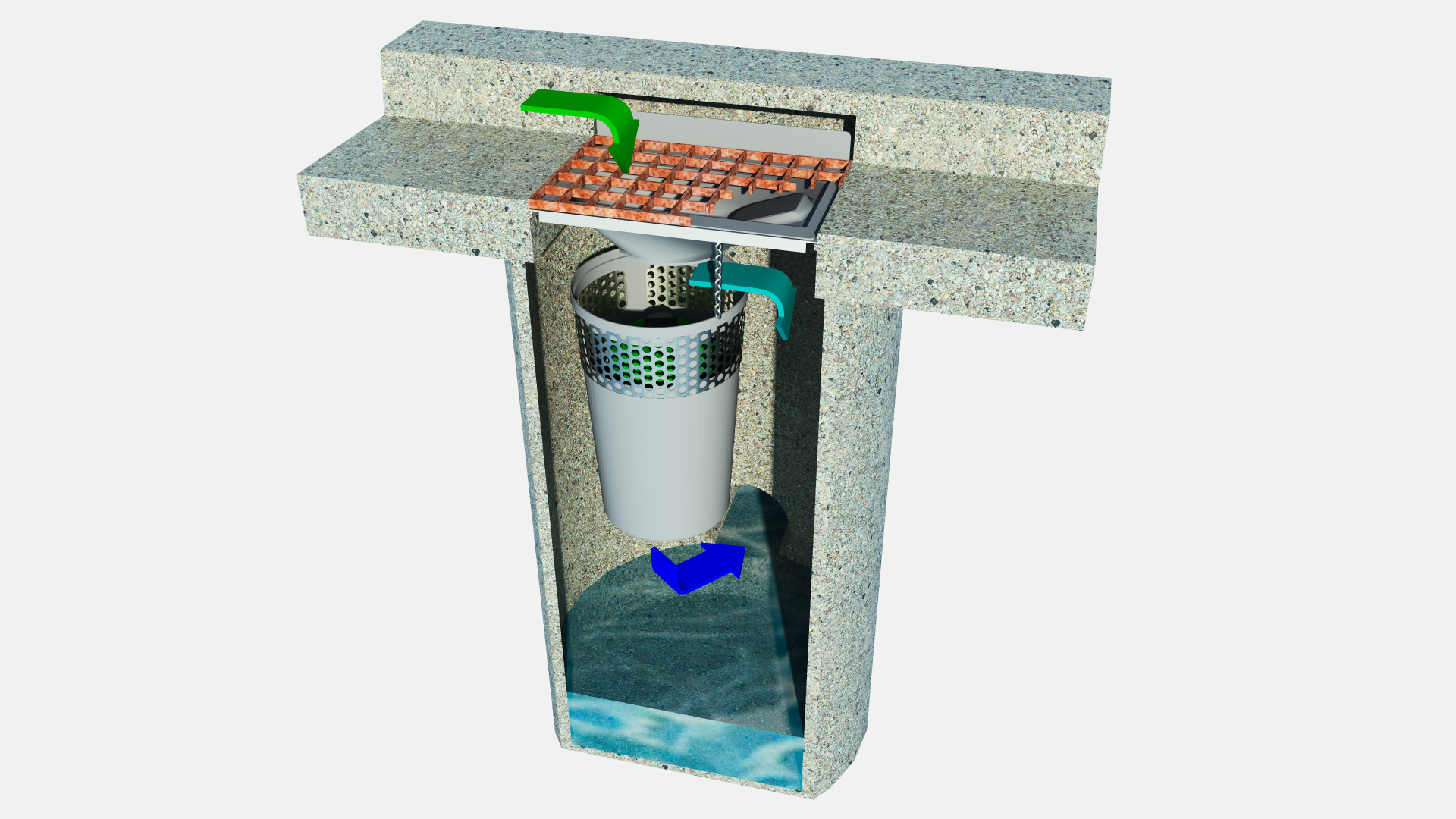

Illustration of flow

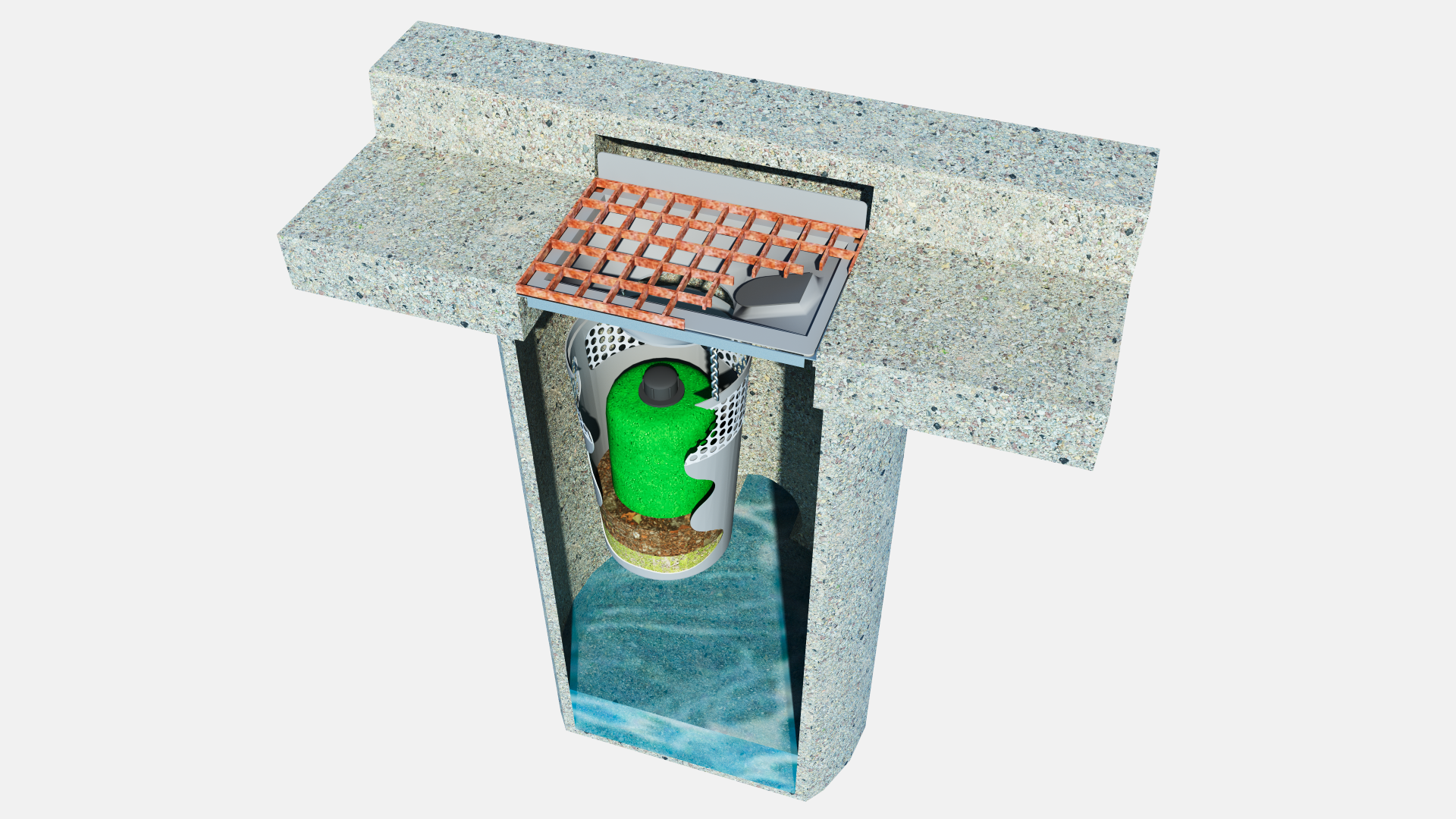

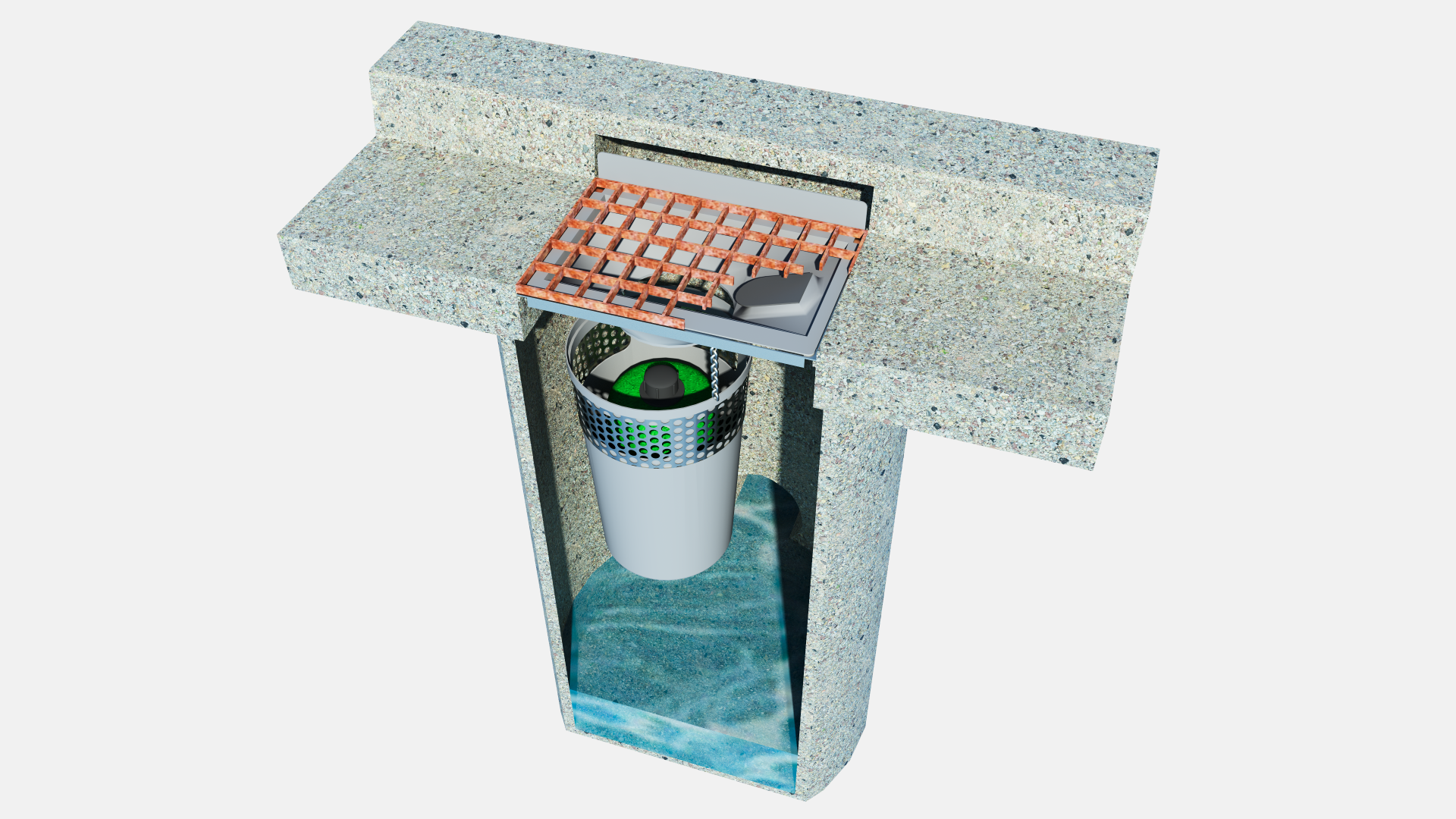

Cutaway view
Close up of device

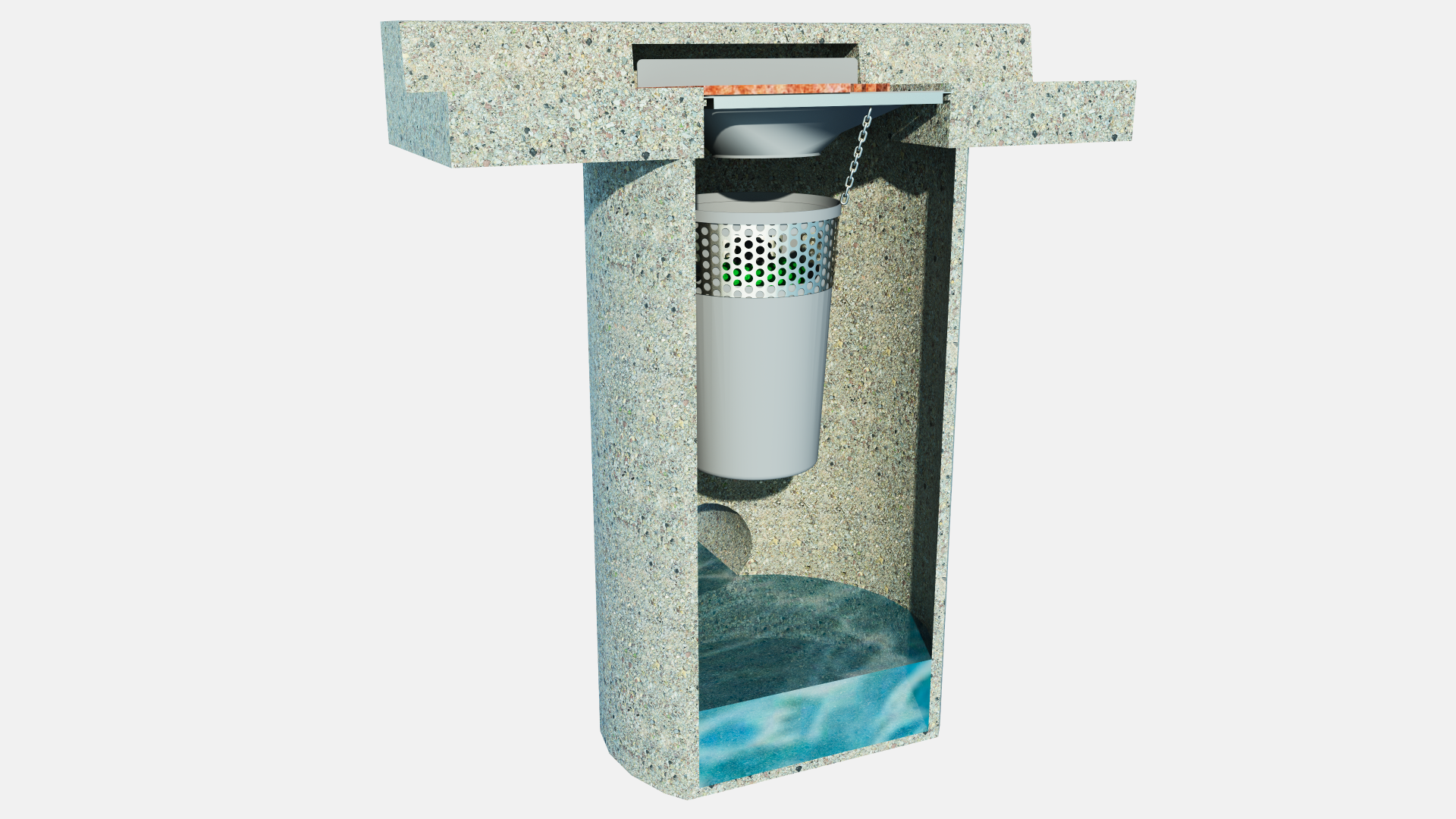

Interior View - Left

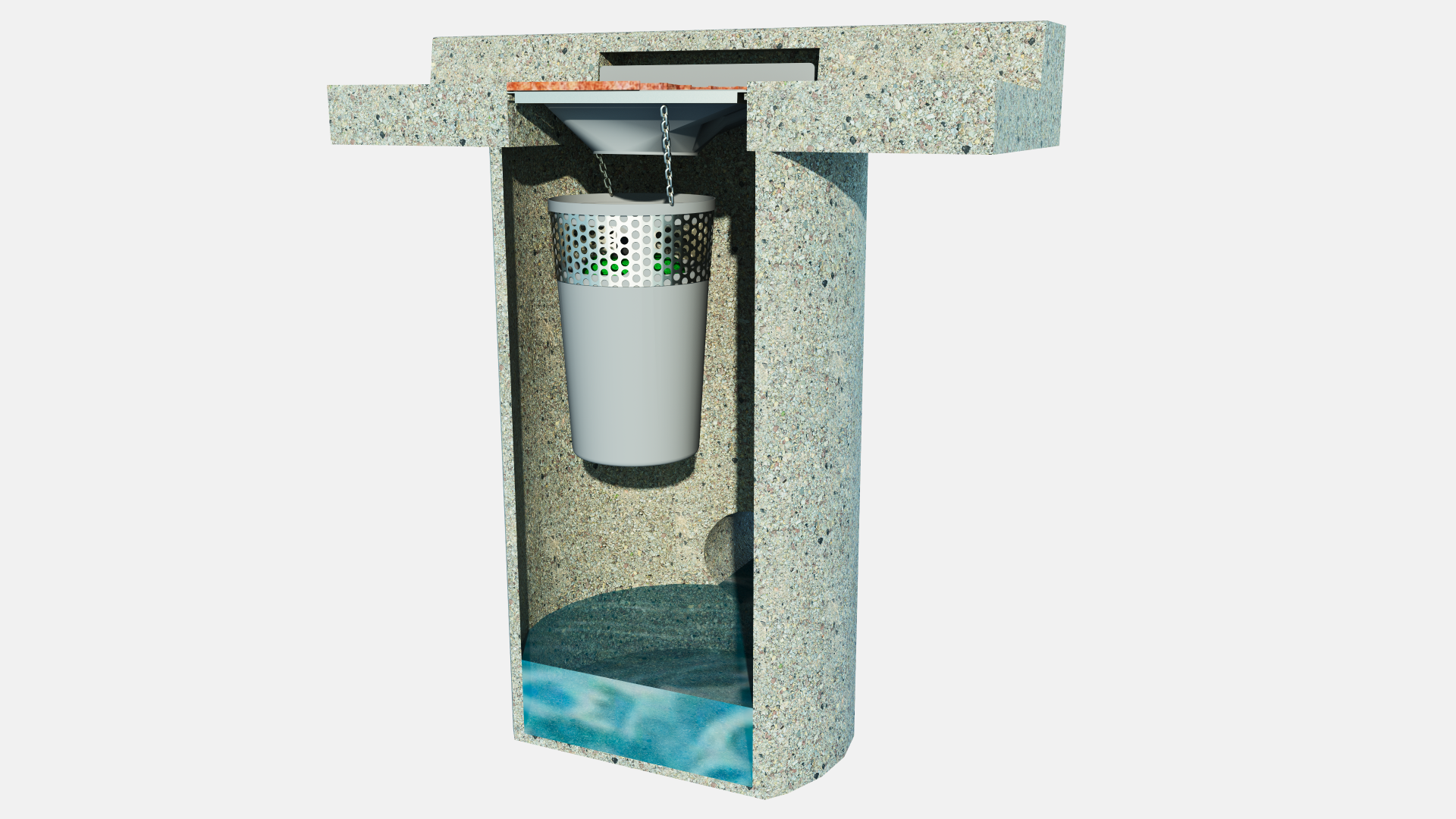

Interior View - Right



Get a Quote

The WD-TCU can be built to fit any size catch basin. Please completely fill out the appropriate sizing guide for ordering. Please including pictures of the catch basin, any obstructions, and the grate.

Download sizing guide

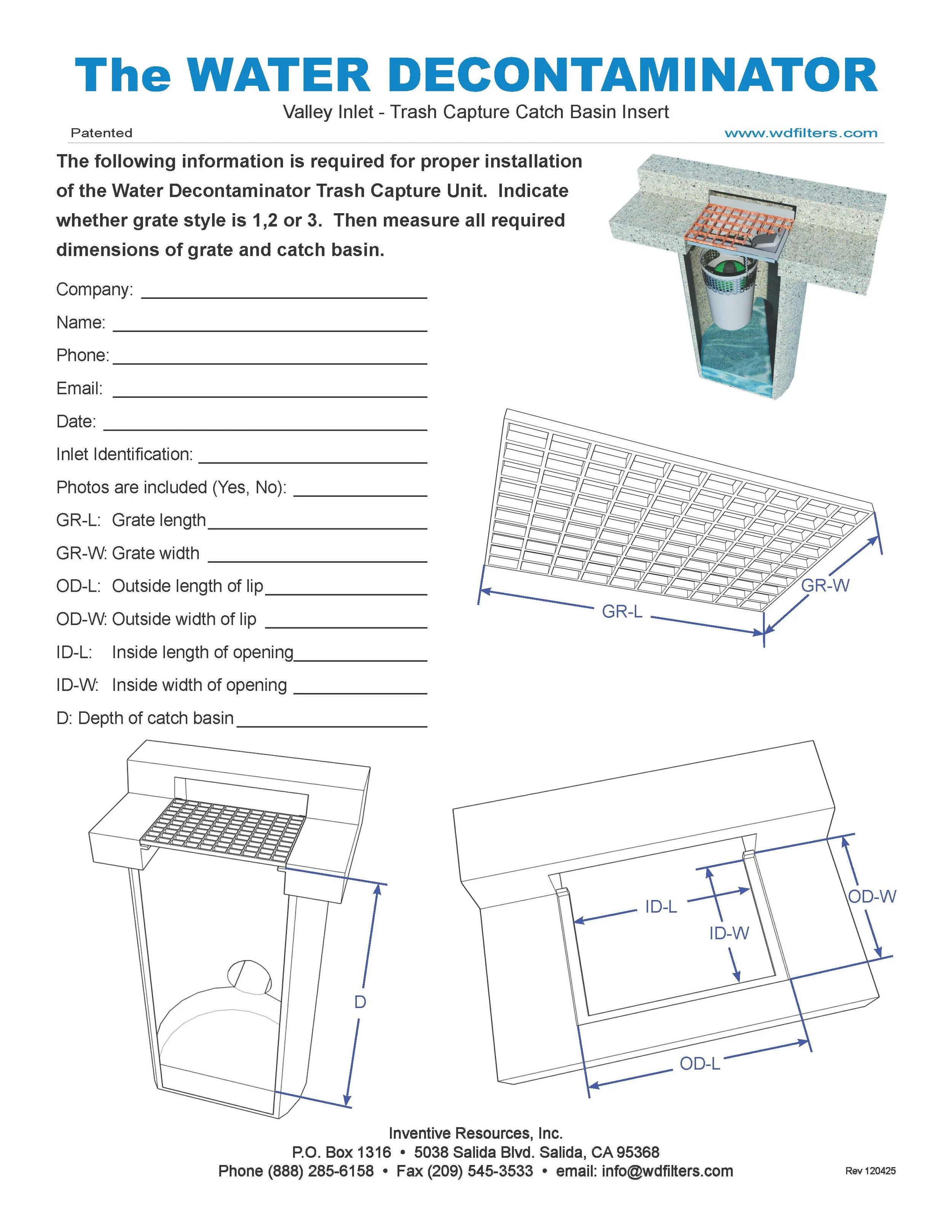

Installation guide for a water decontaminator catch basin storm water filter, including diagrams with measurements for grate and catch basin dimensions, and contact information for Inventive Resources, Inc.

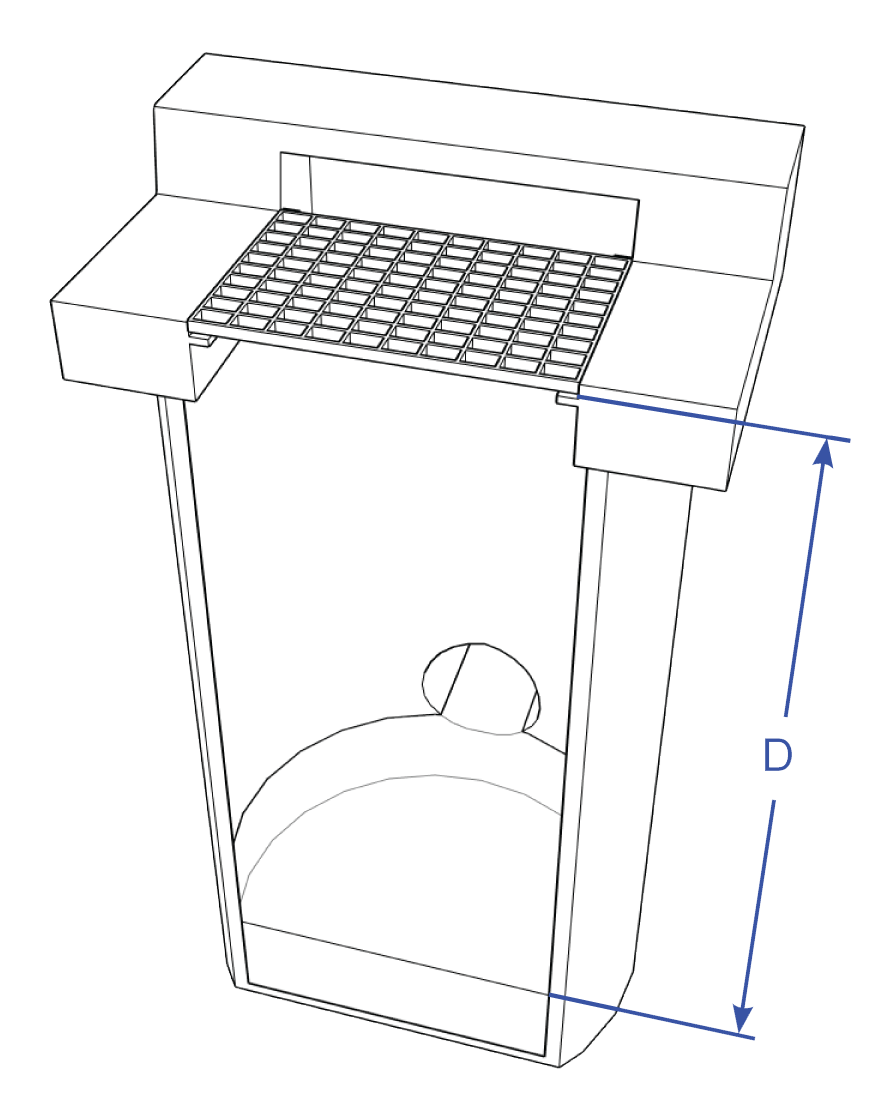

A wireframe diagram of a catch basin with grate on, with labeled dimensions for grates and openings.

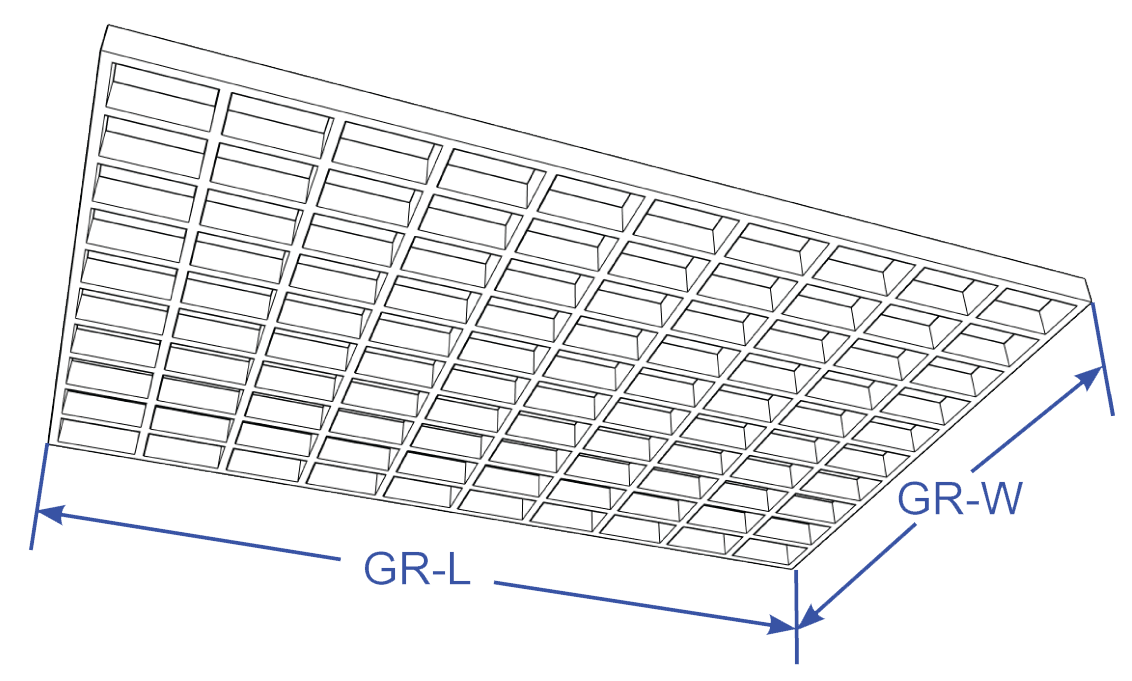

Diagram of a rectangular storm drain grate with labeled dimensions: GR-L (length), GR-W (width).

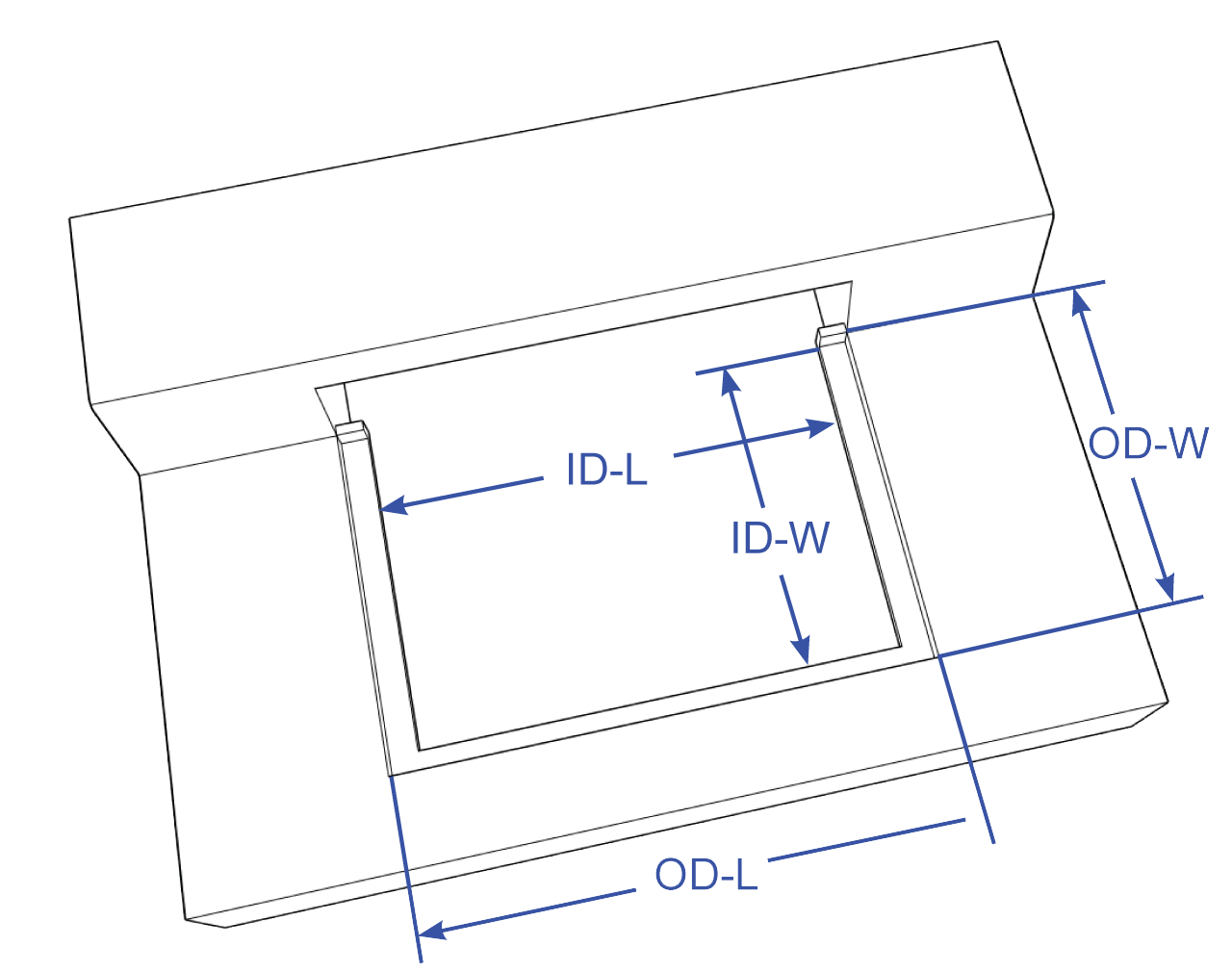

A wireframe diagram of a rectangular storm drain opening with labeled dimensions: inner width (ID-W), inner length (ID-L), outer width (OD-W), outer length (OD-L).

Important Measurements

To insure a proper fit, all the items on the form should be filled in.

OD-L: Outside length of lip

OD-W: Outside width of lip

ID-W: Inside width of opening. This is the smallest clear hole inside the catch basin. Take into account any rough concrete or restrictions.

ID-L: Inside length of opening. This is the smallest clear hole inside the catch basin. Take into account any rough concrete or restrictions.

GR-L: Grate Length

GR-W: Grate Width

D: Depth of catch basin. Measure depth from the grate to the top of the liquid level. (Rectangular only)

Also note if there are any other issues that may need to be considered for fitment. For example access ladders, pipes or other restrictions.
