Round Grate Installation

The Round Grate Water Decontaminator Catch Basin Filter - Trash Capture Unit (WD-TCU) is a patented, environmental product that is placed under a round catch basin grate to help remove trash, sediment, oil and contaminants from runoff. Oil and contaminants are captured in a disposable cartridge. The absorber cartridge uses recycled forest products, essentially fighting pollution with pollution.

Applications:

  • Urban run-off

  • Roadways

  • Parking lots

  • Industrial sites

  • Manufacturing

  • Maintenance areas

Helps clean parking lot run-off, catch basins, ponds, sumps and spills. Cleans storm run-off by screening sediment, debris and other solids into a sediment trap. Oils and chemicals are absorbed in a disposable cartridge

Video Block
Double-click here to add a video by URL or embed code. Learn more

The Water Decontaminator is engineered and patented for the treatment of stormwater run off. We design our filters to meet or exceed stormwater best management practices (BMP’s) and best available technology (BAT). These units are certified and included in the Capture System List of Trash Treatment Control Devices by the California State Water Resources Control Board.

*Authorized dealer for Filtrexx.

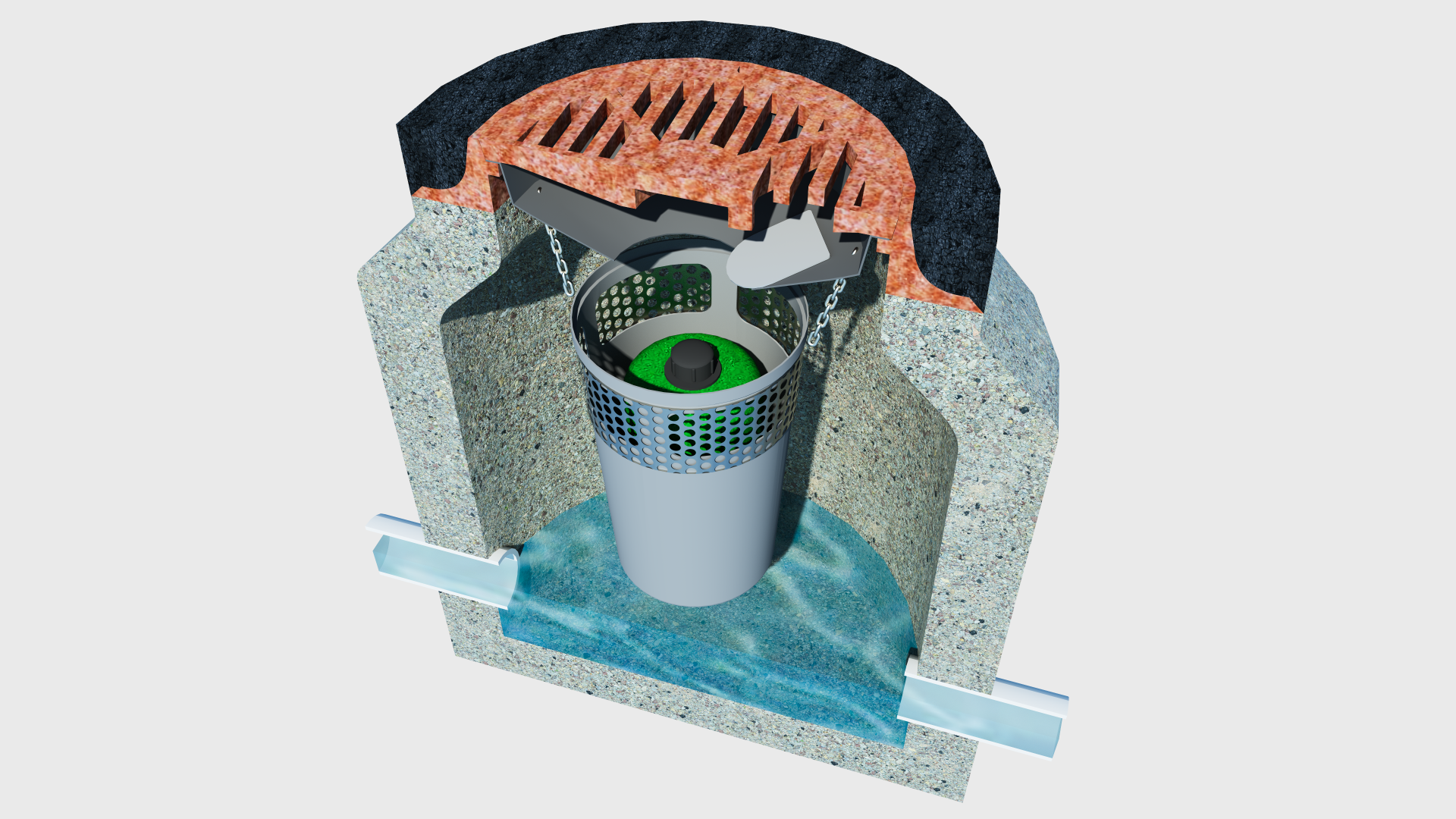

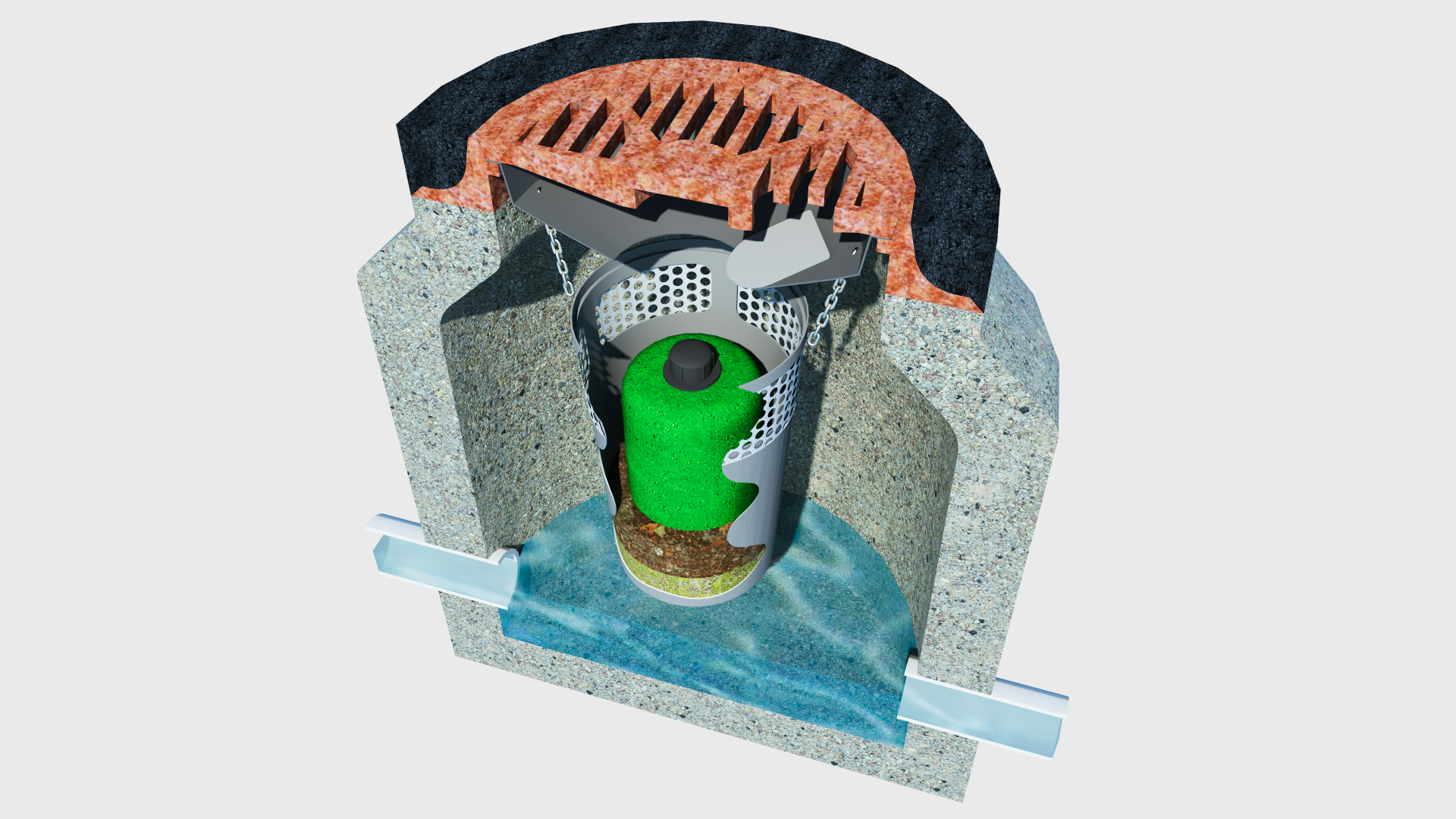

Cutaway illustration of a round gate catch basin filter from Water Decontaminator, showing the collar, suspended bucket, green filter sock, and clean, filtered water flowing out through pipes at the bottom of the basin.

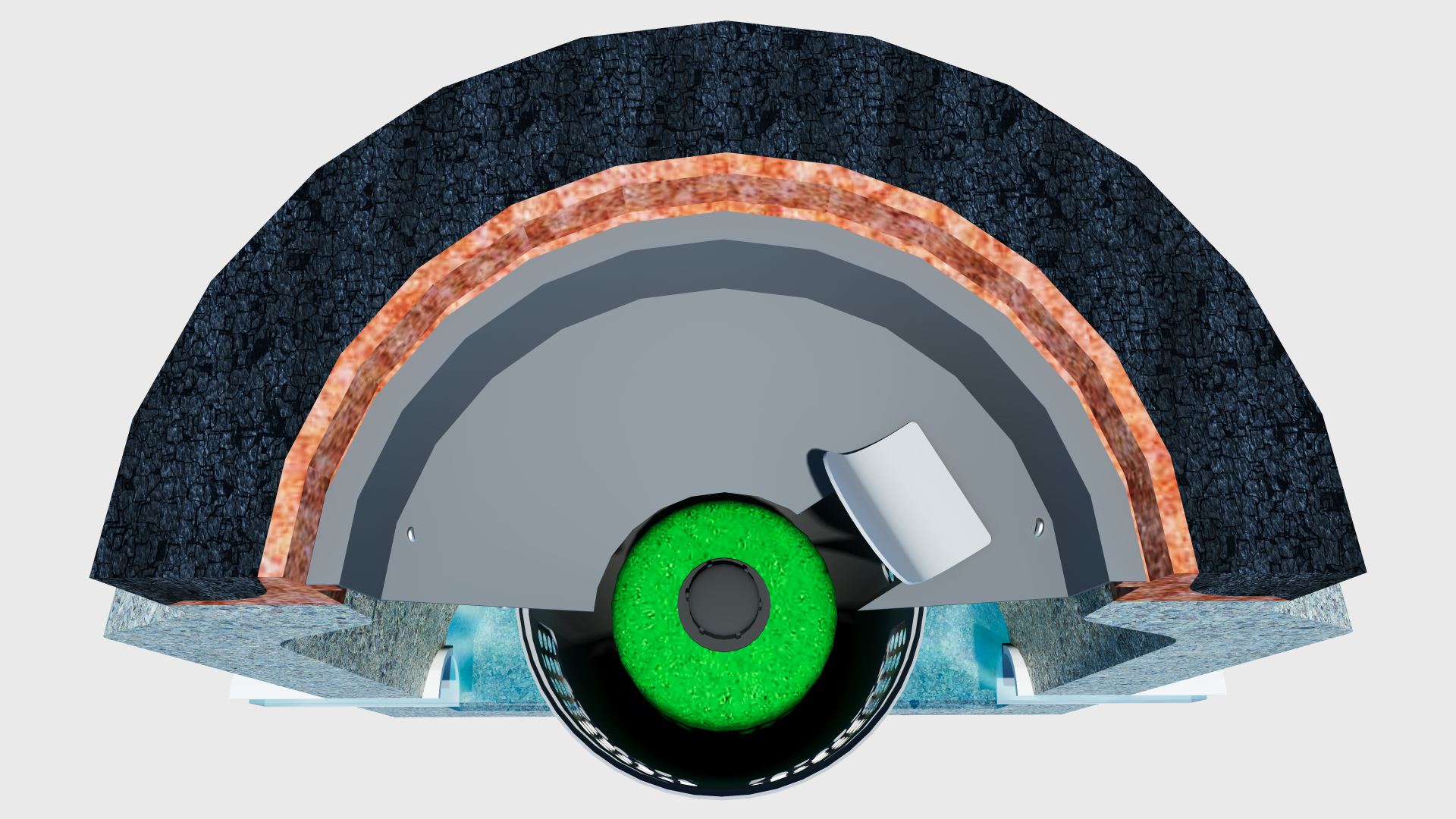

Cross-section of a round gate catch basin filter from Water Decontaminator, showing the collar, suspended bucket, and green filter sock,

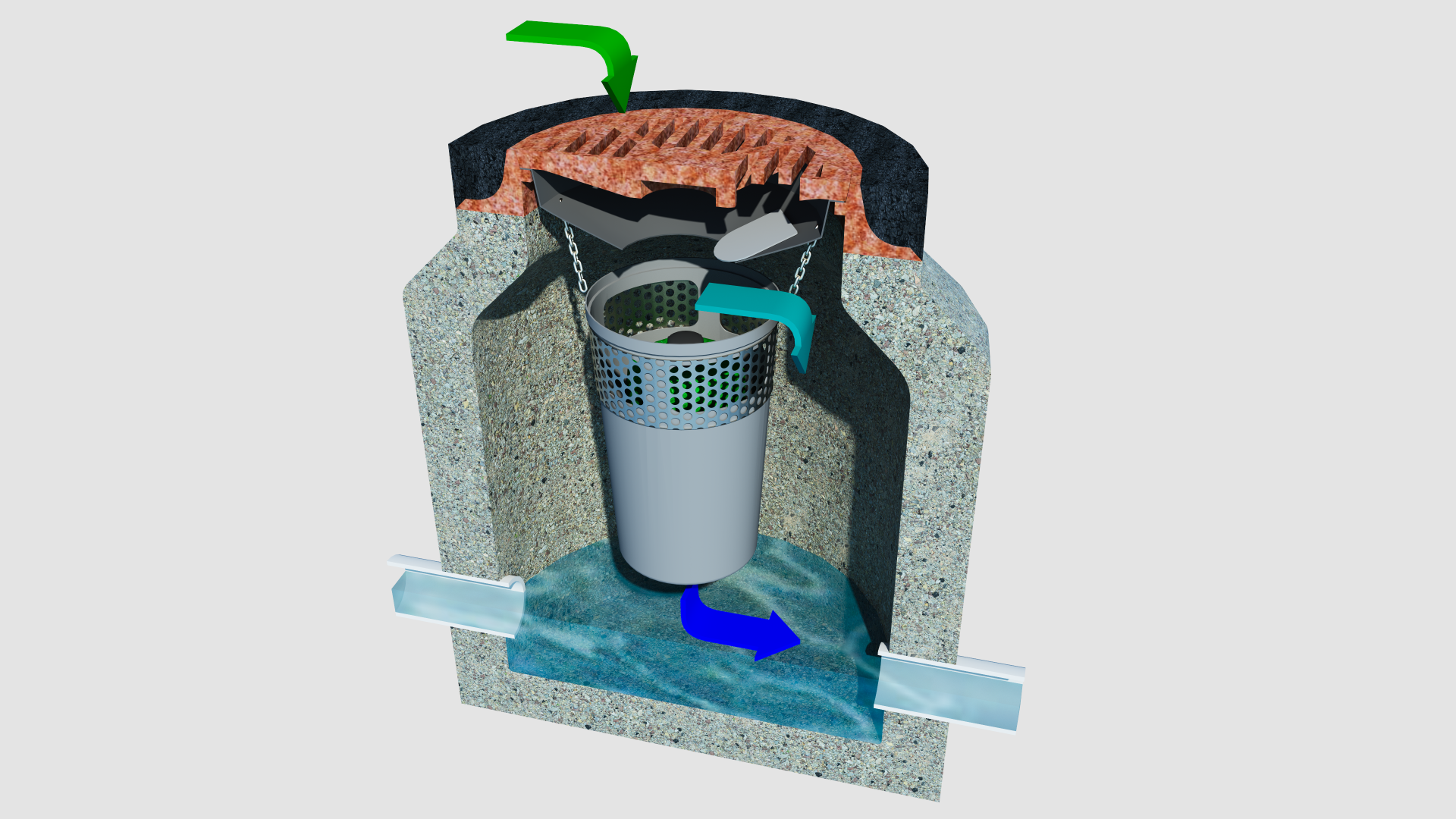

Cross-section of a round gate catch basin filter showing the outlet pipes, outer concrete walls, bucket and filter, and arrows indicating water flow.
Cutaway cross-section of a round gate catch basin filter from Water Decontaminator with a suspended bucket, green filter sock, water outlet pipes, and surrounding concrete basin.
A digital 3D rendering of a round gate catch basin filter showing a bucket hanging from a chain, a collar to direct water flow into the perforated bucket, and a filter inside the bucket to treat runoff.

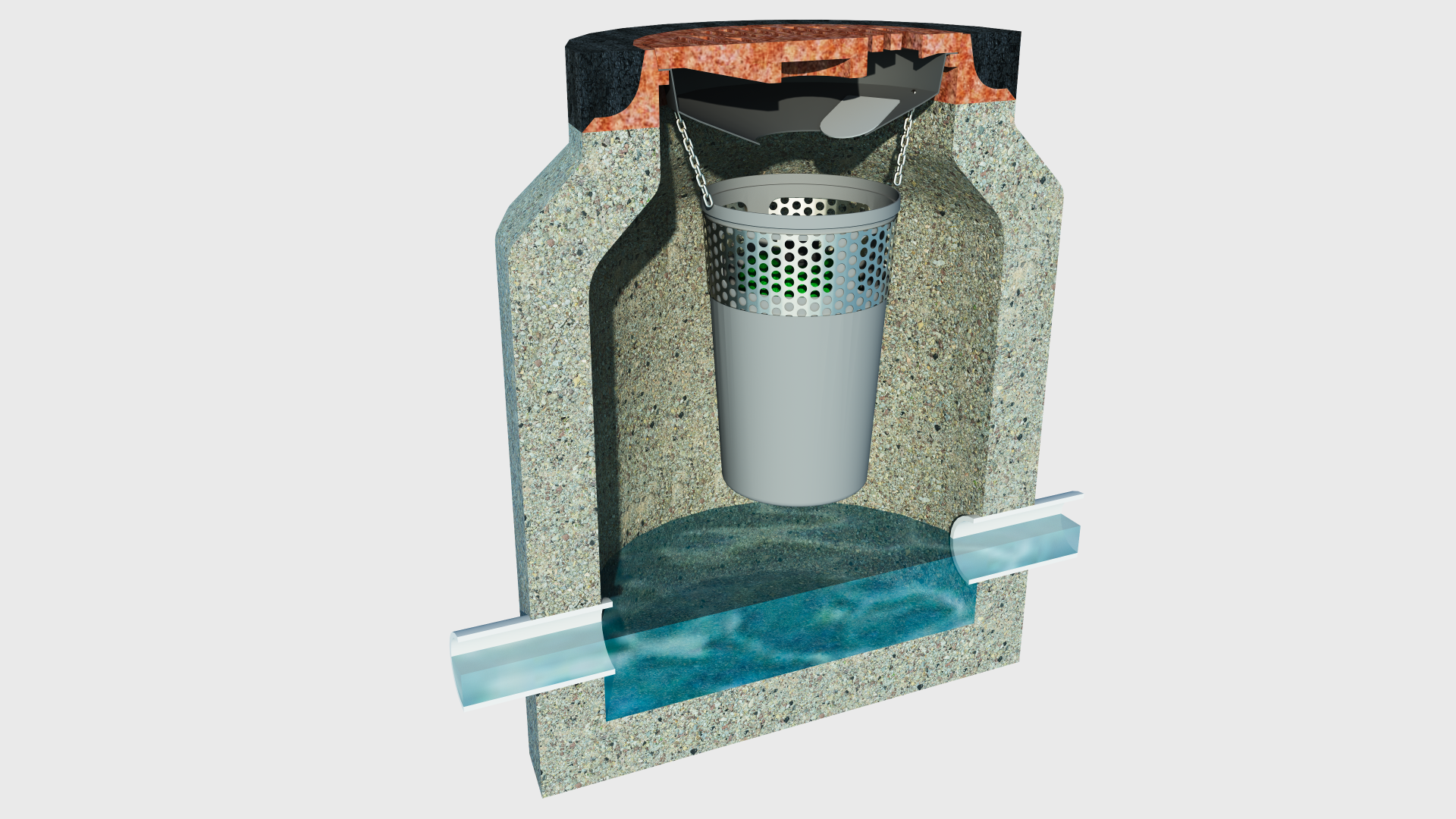

A left side view of a round gate catch basin filter from Water Decontaminator, showing the collar, suspended bucket, green filter sock, and clean, filtered water flowing out through pipes at the bottom of the basin.

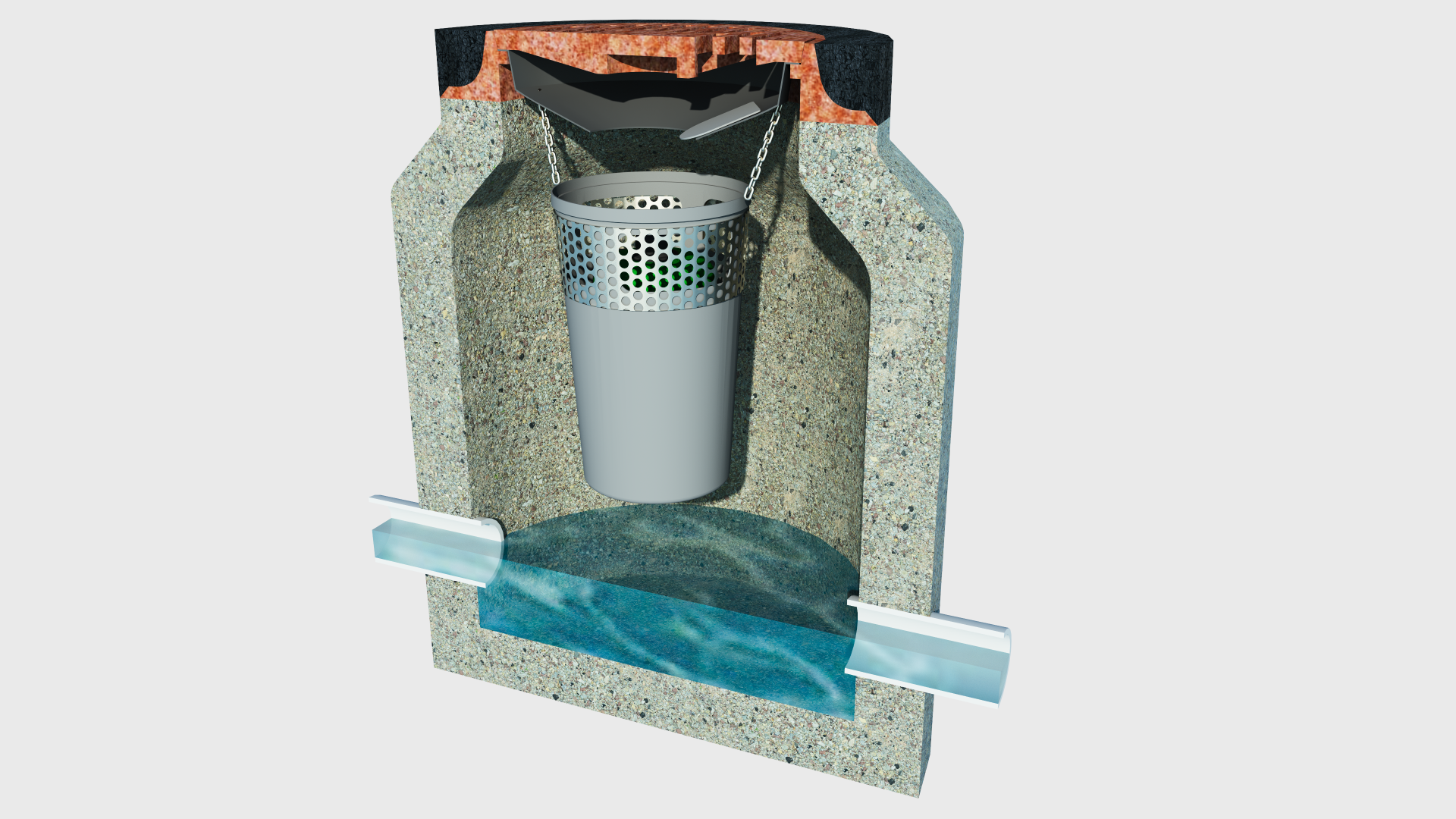

A right side view of a round gate catch basin filter from Water Decontaminator, showing the collar, suspended bucket, green filter sock, and clean, filtered water flowing out through pipes at the bottom of the basin.



Get a Quote

The WD-TCU can be built to fit any size catch basin. Please completely fill out the appropriate sizing guide for ordering. Please including pictures of the catch basin, any obstructions, and the grate.

Download sizing guide

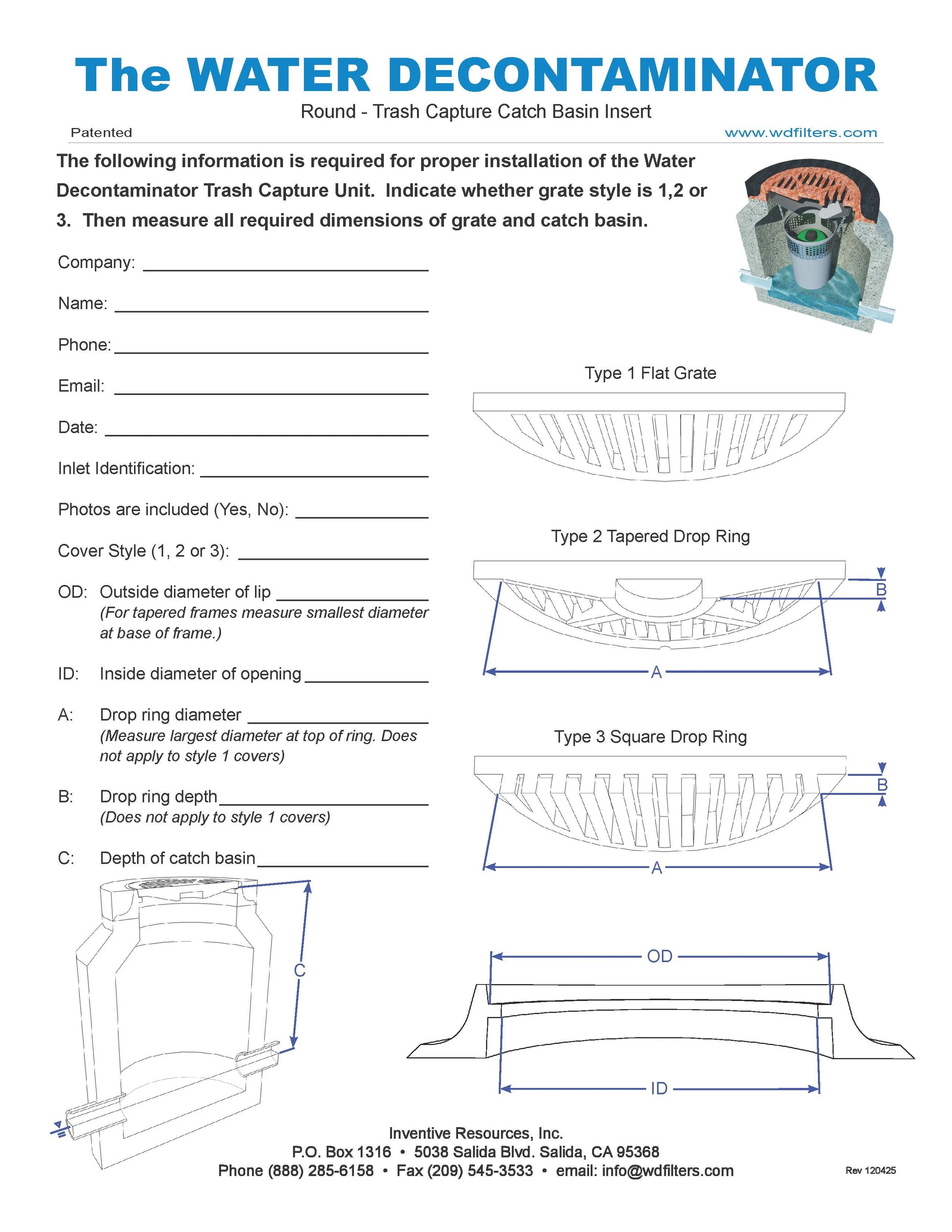

Installation guide for a water decontaminator catch basin storm water filter, including diagrams with measurements for grate and catch basin dimensions, and contact information for Inventive Resources, Inc.

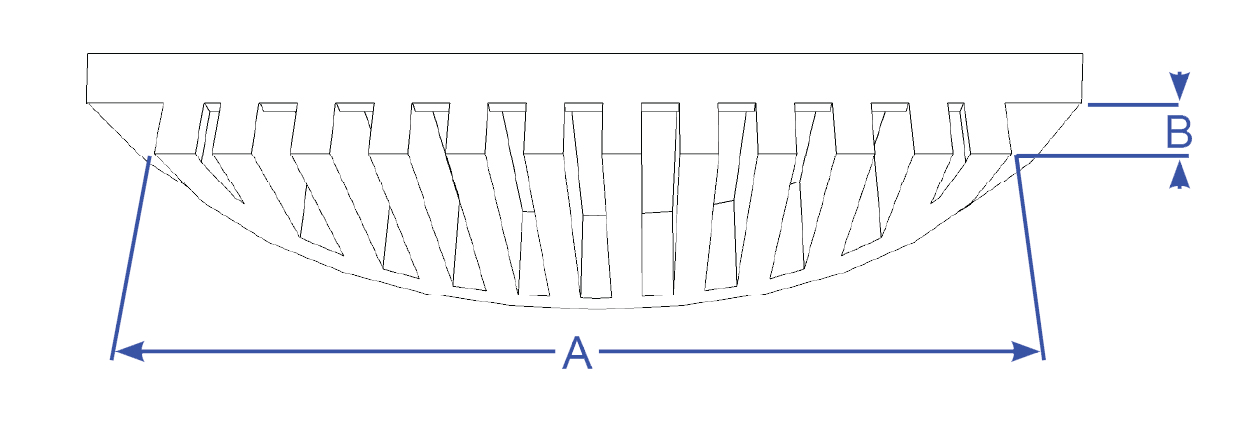

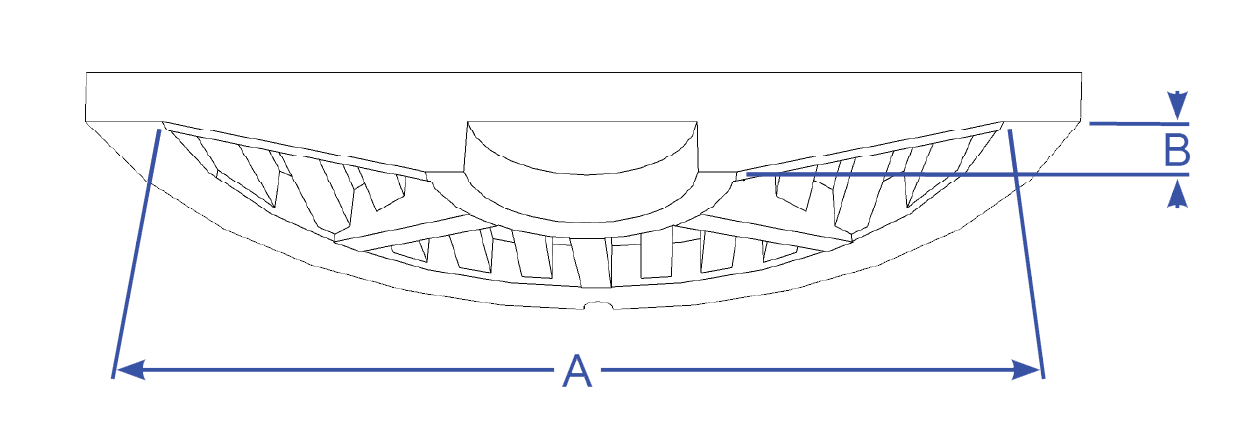

A wireframe diagram of round storm drain grate showing dimensions labeled A and B, with internal design elements visible.
A wireframe diagram of round storm drain grate showing dimensions labeled A and B, with internal design elements visible.

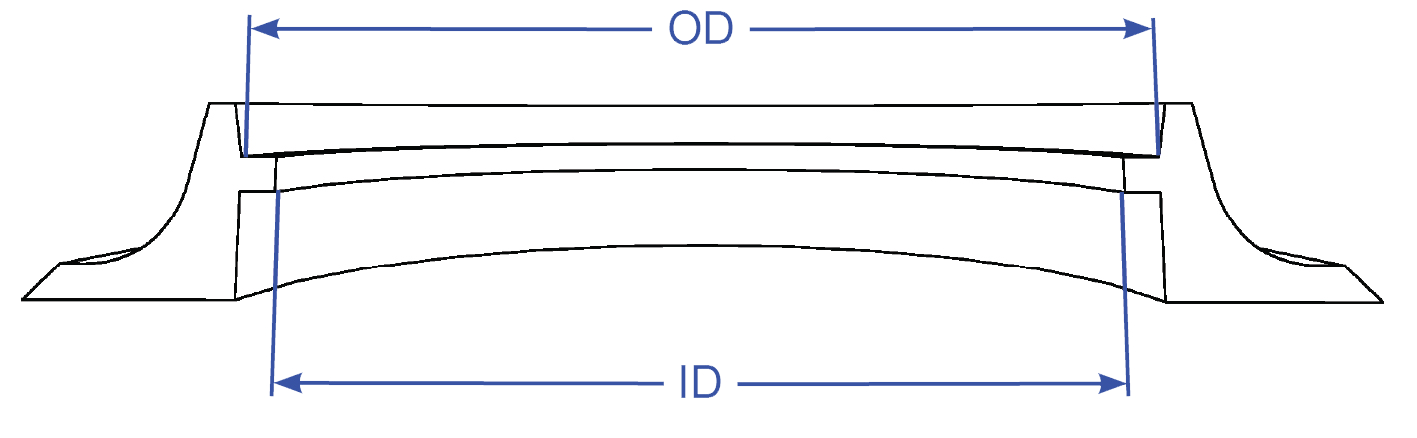

A wireframe diagram of round storm drain grate with marked width and diameter measurements labeled OD for outer diameter and ID for inner diameter.

Important Measurements

To insure a proper fit, all the items on the form should be filled in.

OD: Outside diameter of lip. This is the measurement of where the grate sits when installed.

ID: Inside diameter of opening. This is the smallest clear hole inside the catch basin. Take into account any rough concrete or restrictions.

A: Drop ring dimensions. Most grates are flat on the bottom, but if it does have a drop ring or other reinforcement bars on the bottom these need to be measured to insure clearance for the WD-TCU support frame.

B: Drop ring depth. Measure the part of the grate that extends below the lip it sits on. This is not the full thickness of the cover.

C: Depth of catch basin. Measure depth from the grate to the top of the liquid level.

Also note if there are any other issues that may need to be considered for fitment. For example access ladders, pipes or other restrictions.
