Curb Inlet Installation

The Cure Inlet Water Decontaminator Catch Basin Filter - Trash Capture Unit (WD-TCU) can be installed in all types of storm drain catch basins. Here we show one being installed under a Square Grate. The WD-TCU is a patented, environmental product that is placed under the catch basin grate to help remove trash, sediment, oil and contaminants from runoff. Oil and contaminants are captured in a disposable cartridge. The absorber cartridge uses recycled forest products, essentially fighting pollution with pollution. These units include the 5mm screened bypass to help remove floating debris.

Applications:

  • Urban run-off

  • Roadways

  • Parking lots

  • Industrial sites

  • Manufacturing

  • Maintenance areas

Helps clean parking lot run-off, catch basins, ponds, sumps and spills. Cleans storm run-off by screening sediment, debris and other solids into a sediment trap. Oils and chemicals are absorbed in a disposable cartridge

Video Block
Double-click here to add a video by URL or embed code. Learn more

The Water Decontaminator is engineered and patented for the treatment of stormwater run off. We design our filters to meet or exceed stormwater best management practices (BMP’s) and best available technology (BAT). These units are certified and included in the Capture System List of Trash Treatment Control Devices by the California State Water Resources Control Board.

*Authorized dealer for Filtrexx.

A curb inlet catch basin filter diagram showing a catch bucket hanging from a chain inside a square concrete enclosure, with filtered, clean water at the base.

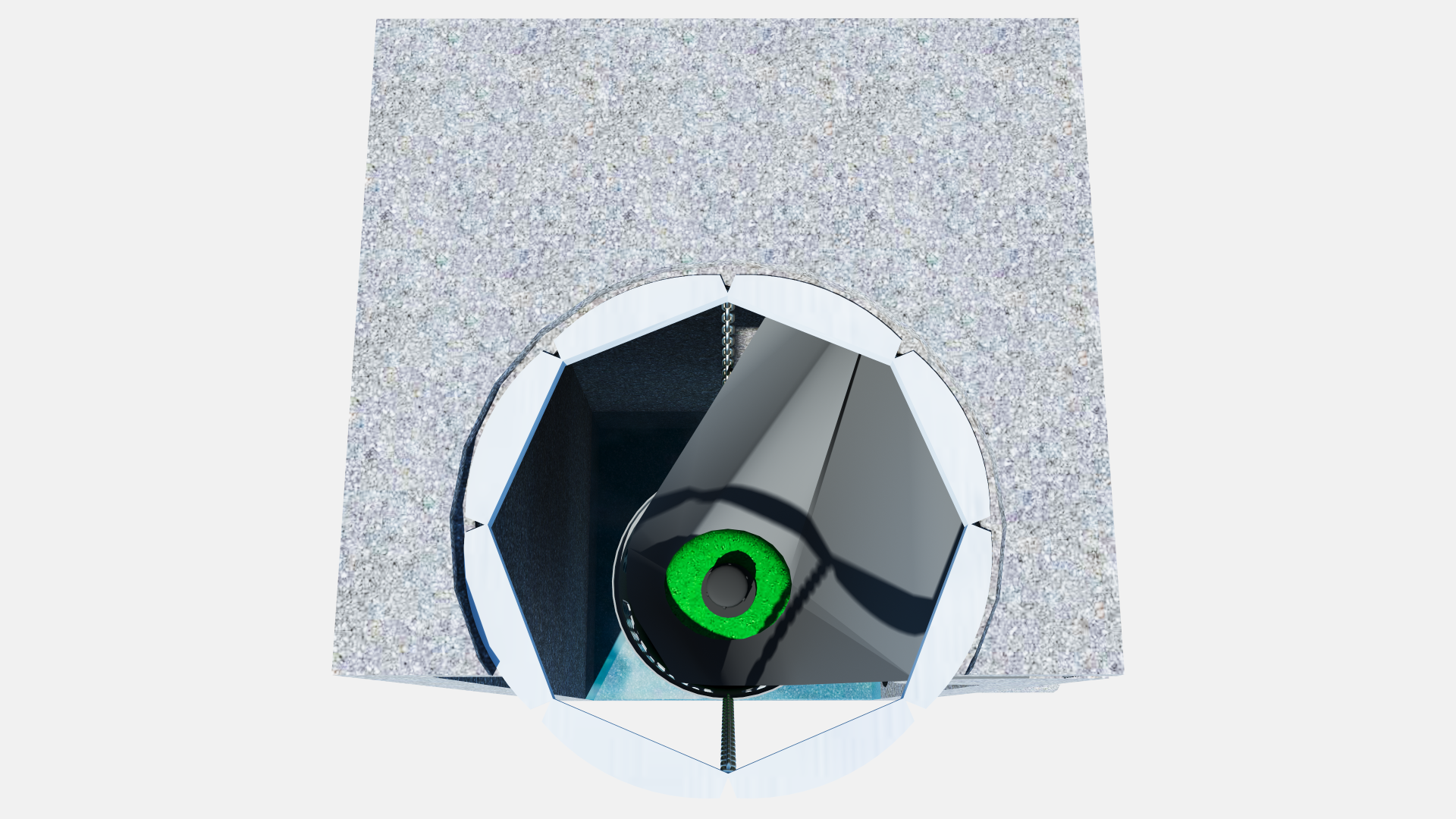

Top-down view of a cylindrical catch basin filter with a green filter sock inside, surrounded by concrete pavement.

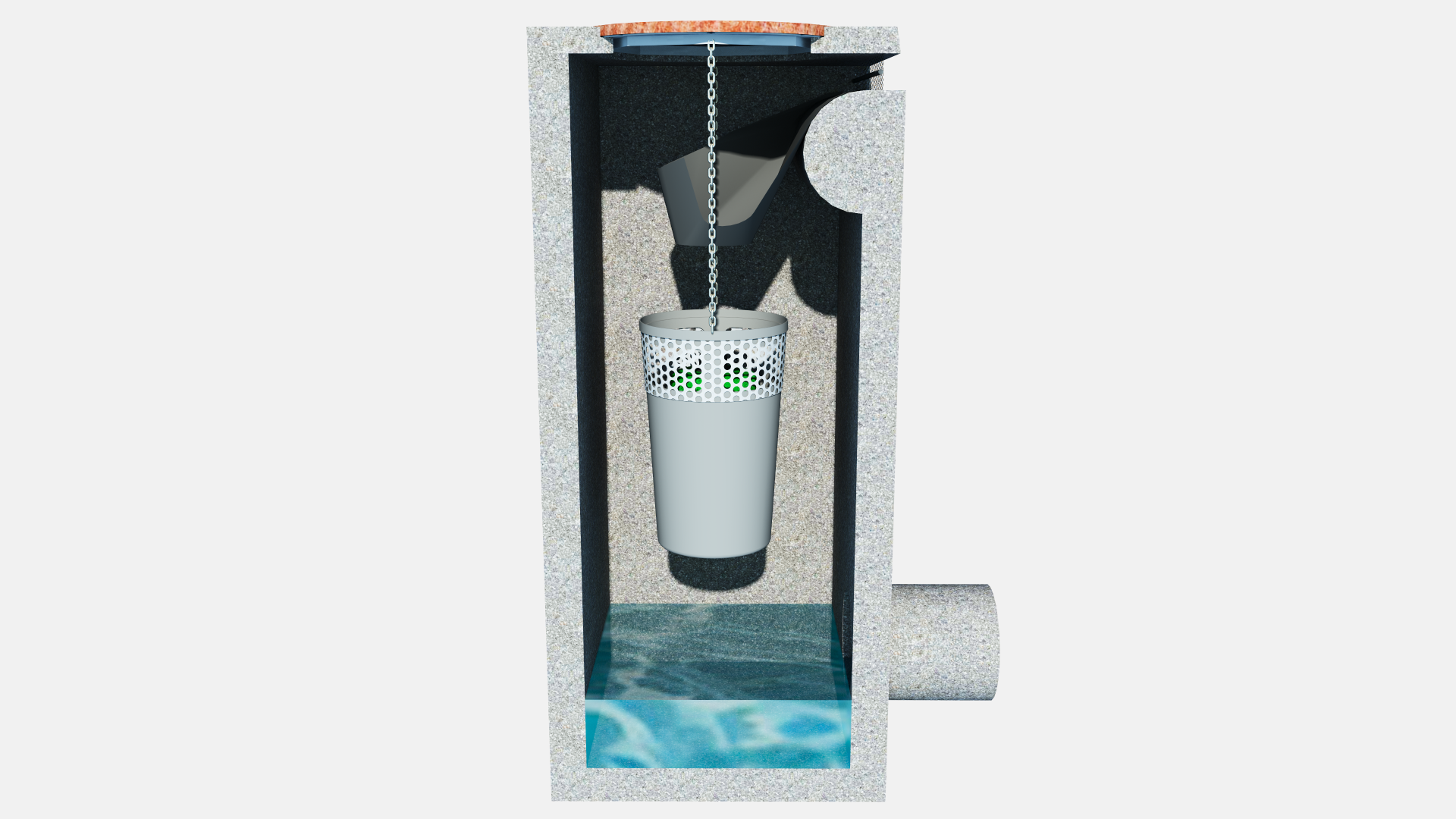

Cutaway illustration of a curb inlet catch basin filter diagram showing a catch bucket hanging from a chain inside a square concrete enclosure, with filtered, clean water at the base.

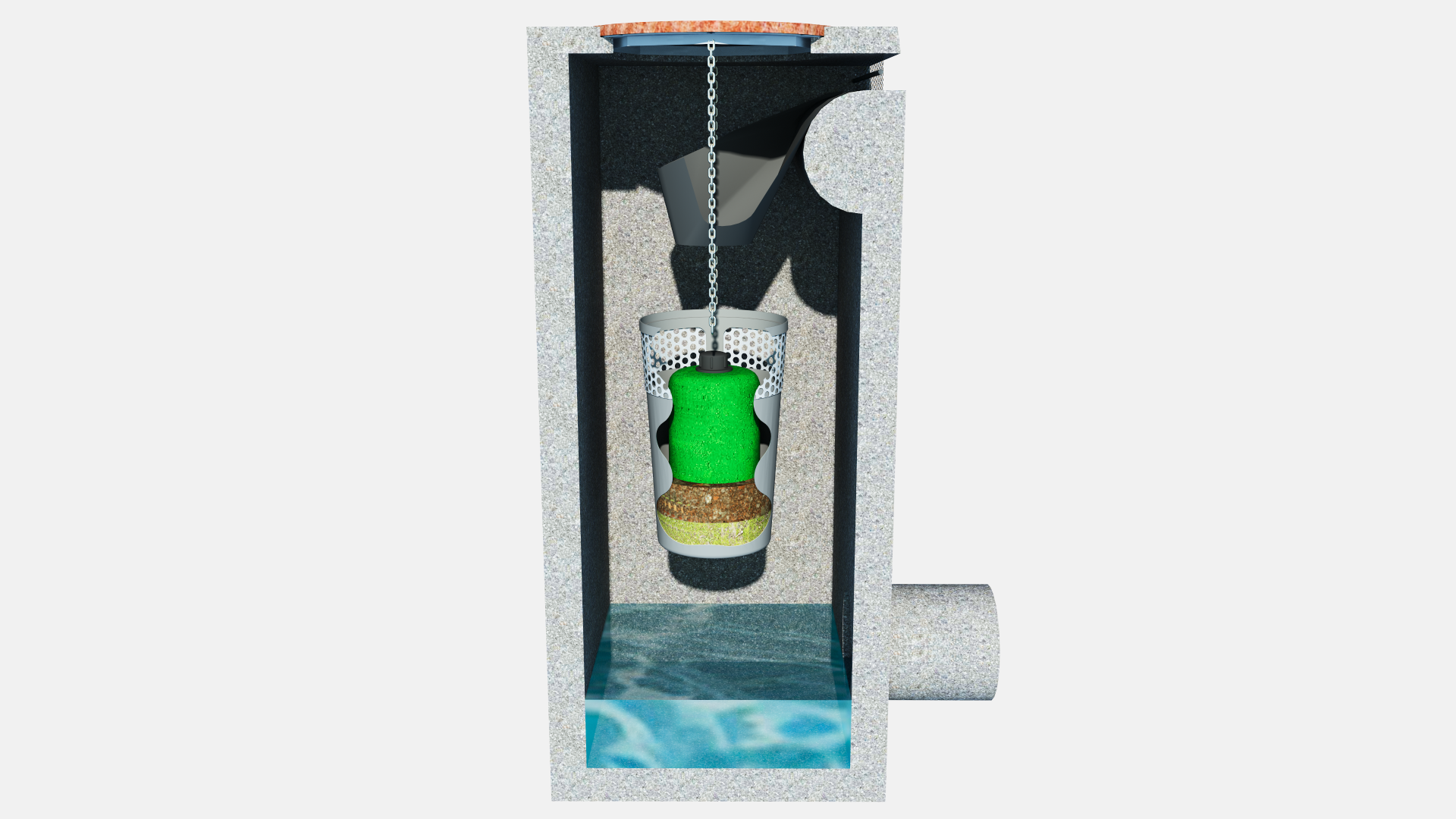

Cutaway illustration of a curb inlet catch basin filter stormwater filtration system featuring a cylindrical filter with multiple layers, suspended by a chain, and a collection chamber connected to a drain pipe.

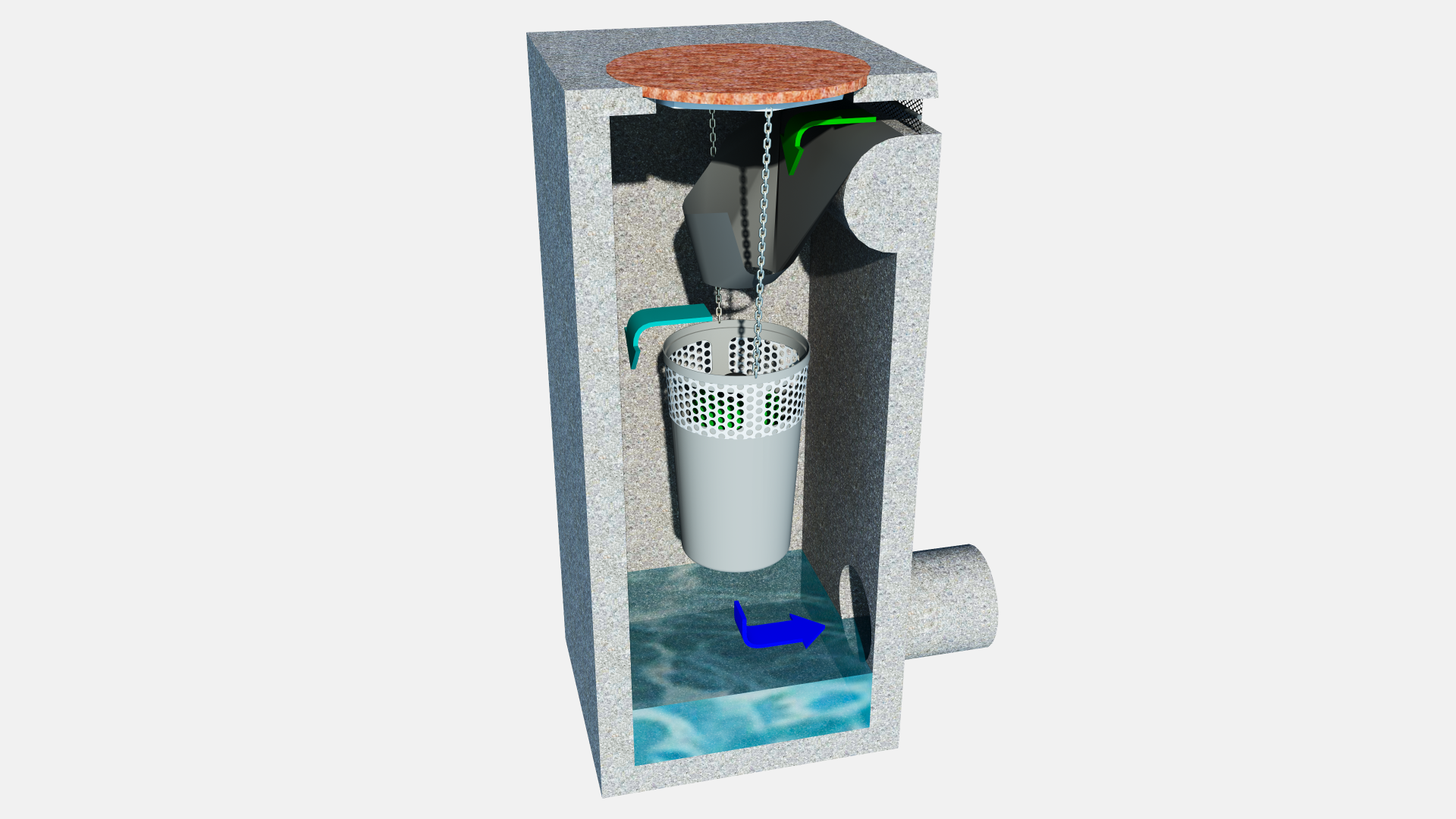

A digital 3D rendering of a curb inlet catch basin filter showing a bucket hanging from a chain, a sluice to direct water flow into the bucket, and a filter inside the bucket to treat runoff.

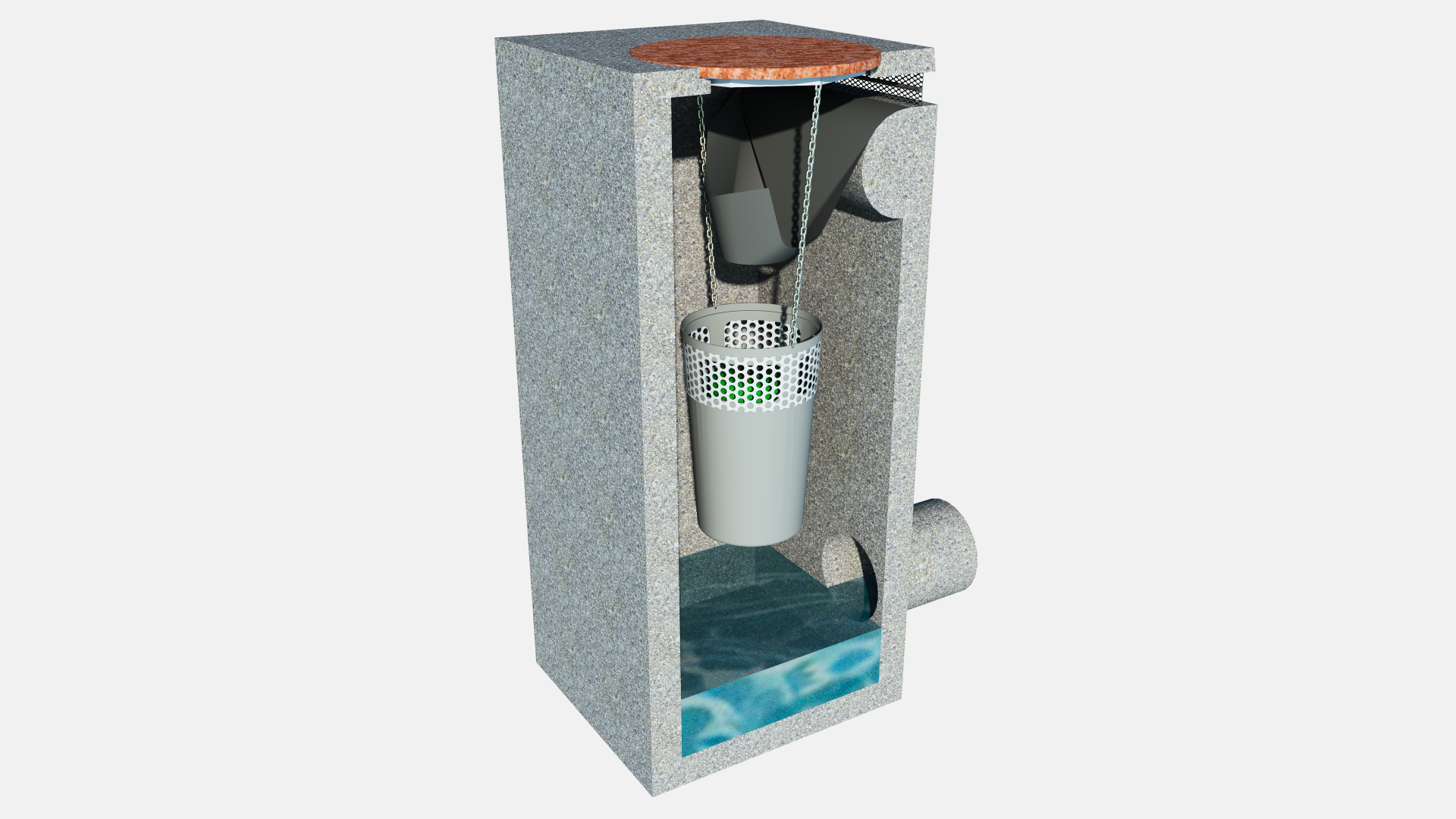

A left side view of a curb inlet catch basin filter diagram showing a catch bucket hanging from a chain inside a square concrete enclosure, with filtered, clean water at the base.

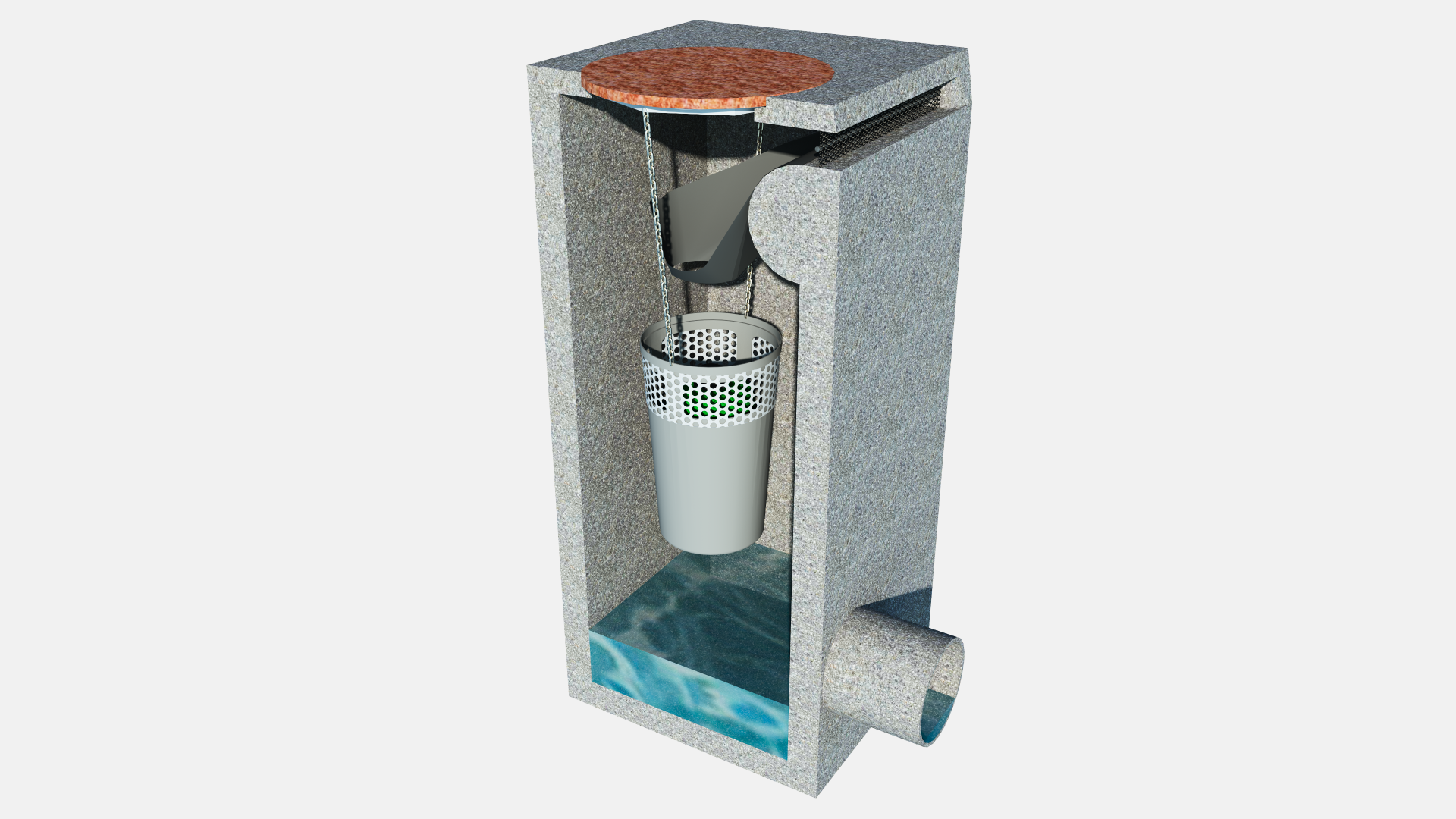

A right side view of a curb inlet catch basin filter diagram showing a catch bucket hanging from a chain inside a square concrete enclosure, with filtered, clean water at the base.



Get a Quote

The WD-TCU can be built to fit any size catch basin. Please completely fill out the appropriate sizing guide for ordering. Please including pictures of the catch basin, any obstructions, and the grate.

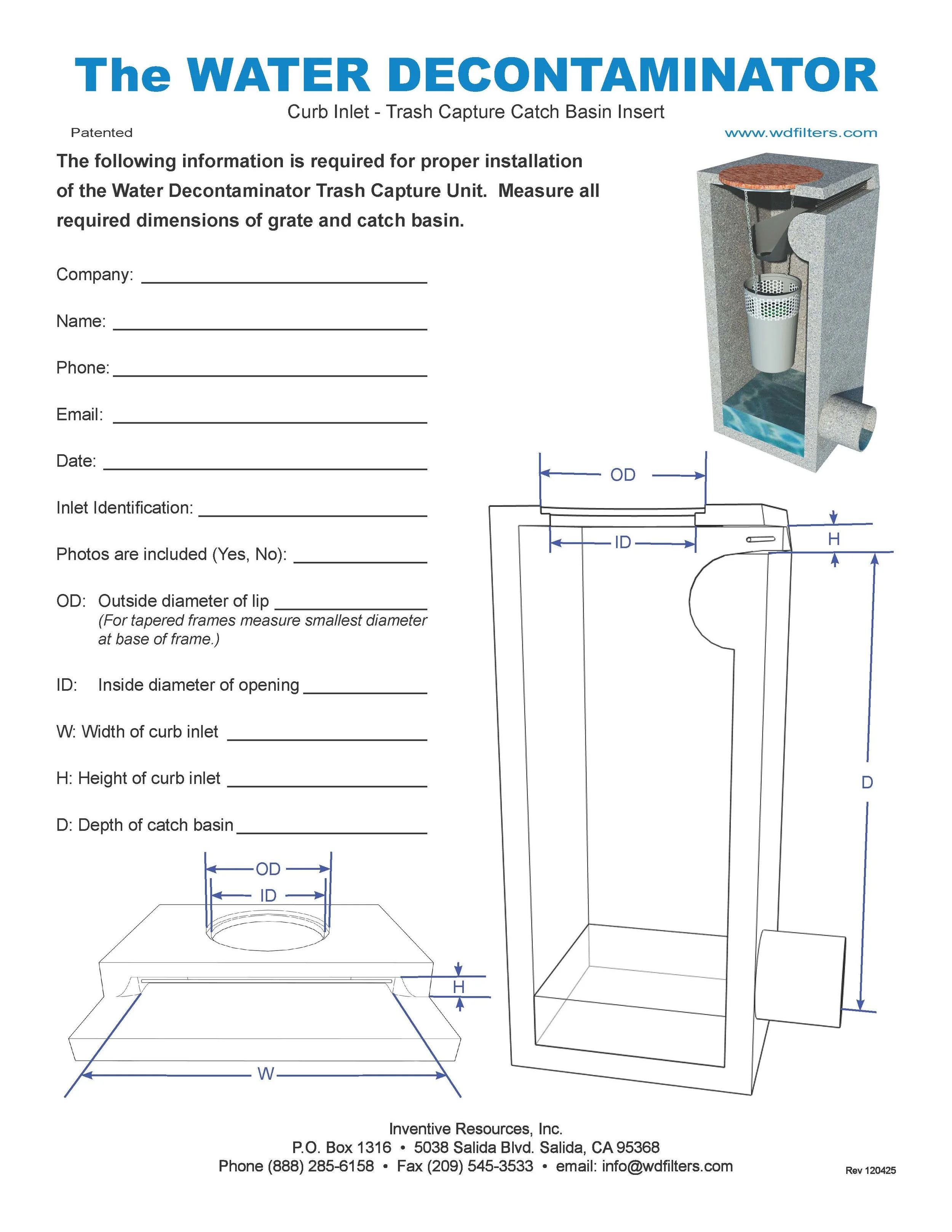

Installation guide for a water decontaminator catch basin storm water filter, including diagrams with measurements for grate and catch basin dimensions, and contact information for Inventive Resources, Inc.
A wireframe diagram of a curb inlet storm drain with measurements and annotations.
A wireframe diagram of a top-down view of a storm drain with a circular opening, showing dimensions labeled as A, B, and C.
Download sizing guide

Important Measurements

To insure a proper fit, all the items on the form should be filled in.

A: Width of curb inlet.

B: Height of curb inlet.

C: Inside width of cover.

D: Depth of catch basin. Measure depth from the grate to the top of the liquid level. (Rectangular only)

Also note if there are any other issues that may need to be considered for fitment. For example: access ladders, pipes or other restrictions.
